DANA Semi-Trailed Disc Harrow BDP-8*4MT for Efficient Soil Processing Available for Import

DANA Semi-Trailed Disc Harrow BDP-8*4MT for Effective Soil Preparation

Disc Harrows
Manufacturer: AO "RZZ"
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

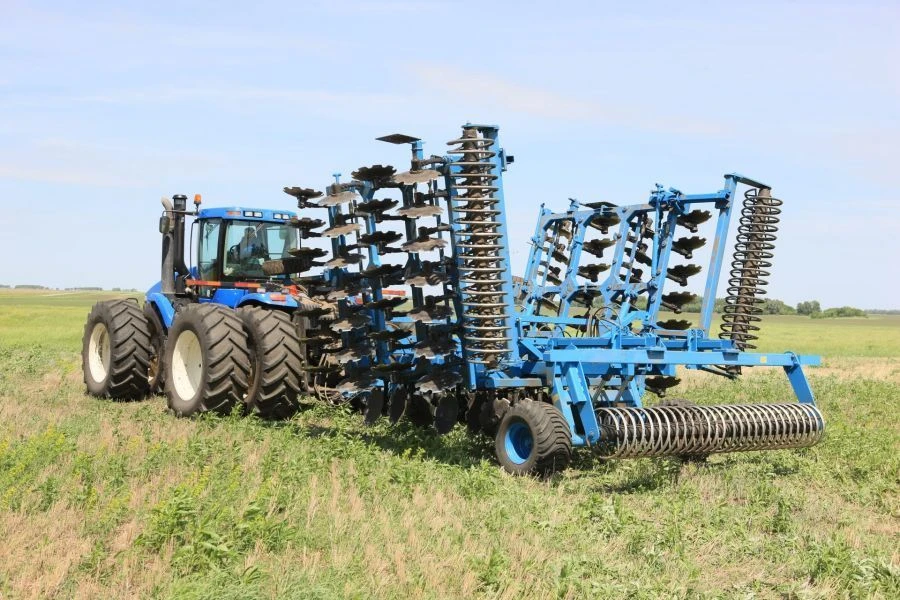

Folding four-row trailed disc harrow DANA BDP-8×4MTM. The working width is 7.9 metres. Compared to two-row four-row harrows provide more efficient tillage and require fewer passes.

The harrow is folded hydraulically and can be transported on public roads. In transport position the width of the implement is 4.4 m. Harrow productivity is up to 12 hectares per hour.

It can be coupled with 400-450 hp tractors: K-744P4, John Deere 9250, Buhler Versatile HHT-435 and others. It is designed for resource-saving pre-sowing and main tillage to a depth of 15 cm for grain, industrial and forage crops. It is used for crushing, levelling and compaction of soil, rejuvenation of meadows and pastures.

Destroys weeds, shreds crop residues after harvesting crops..

Specifications

Type of product according to PP RF 616
Disc harrows
Working width
7.9 m
Distance between rows
400 mm
Weight
8034 kg
Number of implement rows
80 pcs
Material of working elements
32GR.
Material of frame structures
09G2S
Harrow type
Disk
Height
1726 mm
Width
8546 mm
Length
7090 mm
Operating speed
10...15
Capacity per hour
8...12
Number of working orans
80 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
