BDM 2.7x2 Disc Harrow for Efficient Soil Tillage

Available for Import

BDM 2.7x2 Disc Harrow for Effective Soil Tillage and Preparation

Disc Harrows

Manufacturer: VYATKA-AGRODIZEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

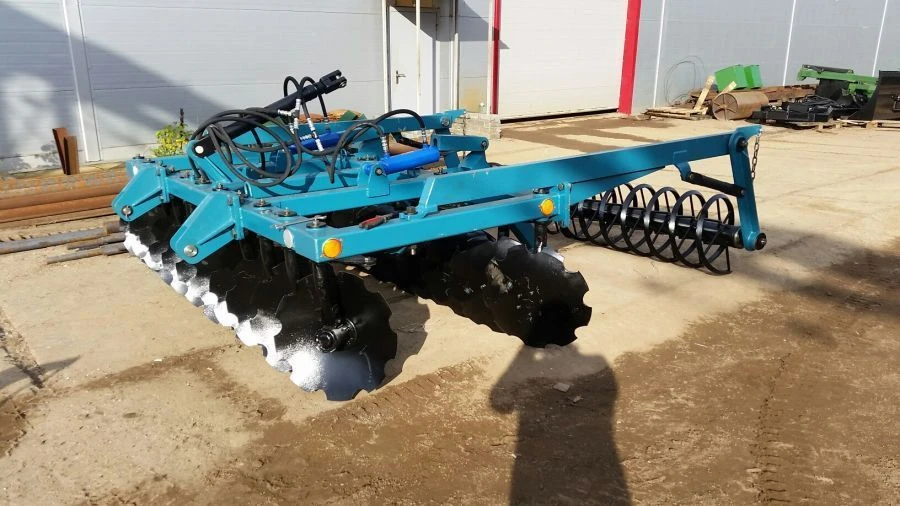

Disc harrow BDM-2,7*2H is a mounted implement with 2 (two) rows of discs on individual stands. The working unit is a spherical disc with a diameter of 560 mm, reinforced bearing unit (BDM bearing housing), working unit stand with "bush-stand" lubrication. A mechanism for setting the angle of attack of each disc row. The disc harrow is equipped with a spiral loop roller, which allows for smooth adjustment of the working depth without changing the angle of attack of the discs. The Vyatka modular disc harrow is designed for conventional and minimum basic and pre-sowing tillage for grain, industrial and fodder crops, refreshing sodden meadows and stubble stripping.

In one pass the harrow shreds and embeds plant residues of the predecessor and weeds into the soil, creates a loosened and levelled layer of soil and embeds fertiliser.

A distinctive design feature of the paper machine is that each disc is located on an individual...

Specifications

Type of product according to PP RF 616

Disc harrows

Capacity per hour

4.05

Operating speed

Length

4850 mm

Width

3000 mm

Height

1300 mm

Working width

2.7 m

Harrow type

trailed

Distance between rows

900 mm

Weight

1300 kg

Number of implement rows

2 pcs

Material of working elements

steel 65

Material of frame structures

09 g 2s steel

Number of working orans

20 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
