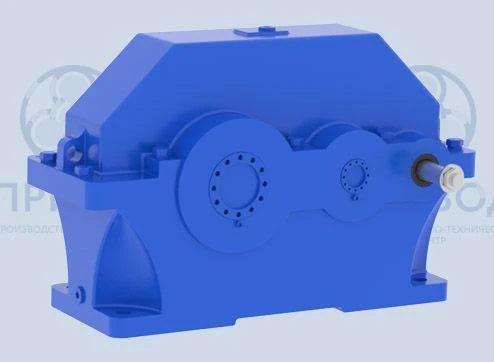

Cylindrical horizontal two-stage gearbox with Novikov meshing 1Ts2U(Ts2U)-315N, 1Ts2U(Ts2U)-355N, 1Ts2U(Ts2U)-400N, 1Ts

Gear reducers Ts2U-N toothed cylindrical two-stage narrow horizontal for general purpose
are used to increase torques and reduce speed. The gearboxes are used in
areas with moderate climate (version U), dry and humid tropical climate (version T),
placement categories 1, 2, 3, 4 (operation outdoors under a canopy, in enclosed rooms and
rooms with regulated climate).
Conditions of application:
constant and alternating, single direction and reversible load
constant and intermittent operation
Shaft rotation in any direction, speed of the high-speed shaft up to 1500 rpm.
Unit designation
1Ts2U 315N-25-12Ts-U2, where:
1Ts2U - cylindrical two-stage gearbox;
315 - centre distance of the low-speed stage, mm;
25 - nominal gear ratio;
12- assembly variant;
C- cylindrical end of the low-speed shaft;
U- climatic version;
2- placement category.
