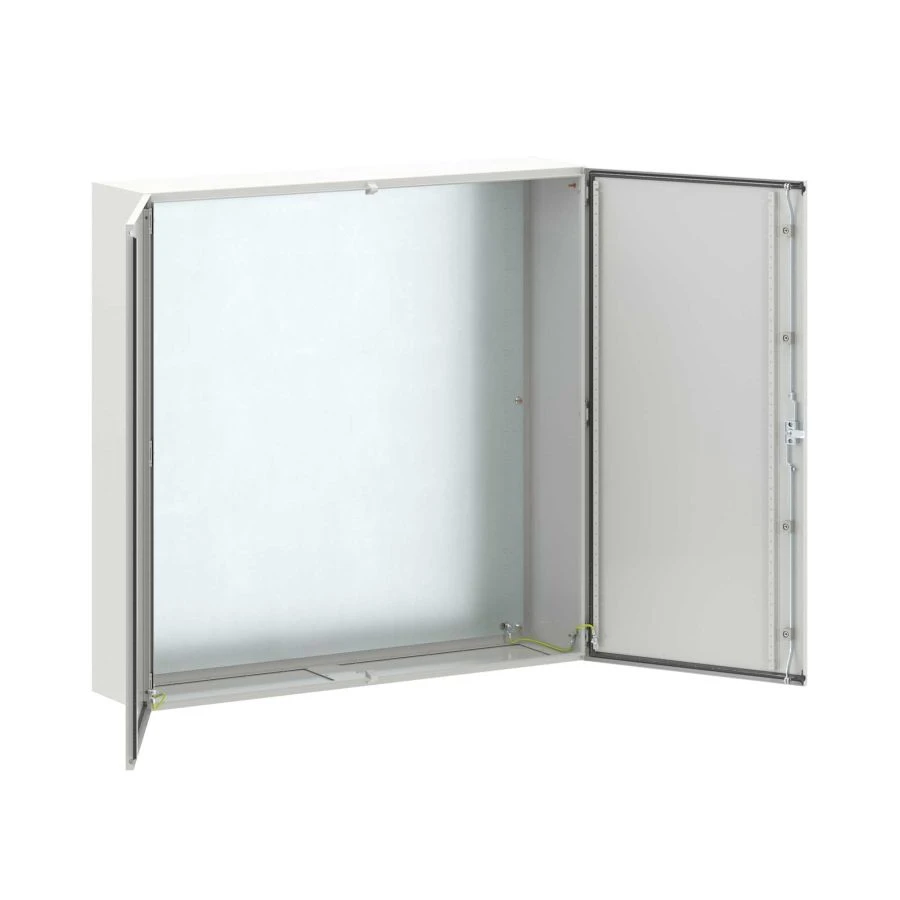

Curtain enclosures STE made of sheet steel with solid door

Hanging metal enclosures of STE series are designed for automation and power distribution systems. Modern production lines, high standards of production and control guarantee stable high quality products. Multi-stage colouring technology protects the enclosure from negative environmental effects, ensuring a long service life without corrosion. Enclosures are made of steel with increased thickness of 1.5 mm and by welding technology from a single sheet of metal with the smallest possible number of welded seams, which provides increased loading capacity under static load and increased resistance to dynamic (vibration) load. Protection degree of single-leaf enclosures - IP66; double-leaf enclosures - IP55. Degree of protection against mechanical shock - IK10. Seismic resistance 9 points on the MSK-64 scale. Mechanical design group M39. Operating temperature range from -60 C to +90 C. Climatic execution - UHL1. Flammability group - G1.
