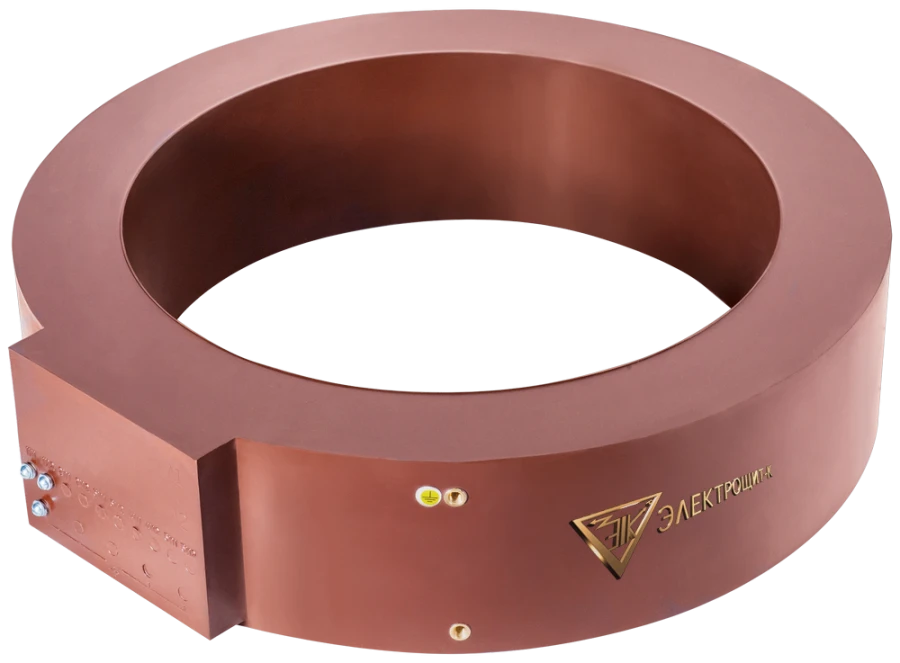

Current Transformer TV-EK M2 for Effective Electrical Measurement

Low-Power Electrical Transformers

Manufacturer: ELECTROSHIT-K° LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

TV-EC M2 current transformers are used for installation in current conduits or busbars. The transformer is mounted inside the conductor casing. The primary winding of these transformers is the current carrying busbar. Insulation is provided by the transformer housing itself, made of compound and the insulation provided for the primary winding of the final product. The secondary winding leads are located on the transformer housing itself in accordance with the design features of the end product.

Specifications

Overall dimensions (Dnar x Din x H) max.

1400x1200x500

Rated secondary current, A

1; 2; 2,5; 5

Rated primary current, A

50 - 45000

Rated voltage, kV

0,66; 3; 6; 10; 15; 20; 24; 27; 35; 110; 150; 220; 330; 500; 750

Highest operating voltage, kV

0,72; 3,6; 7,2; 12; 17,5; 24; 26,5; 30; 40; 126; 172; 252; 363; 525; 787

Accuracy classes of secondary windings for measuring and metering according to GOST 7746

0,2S; 0,2; 0,5S; 0,5; 1; 3; 5; 10

Accuracy classes of secondary windings for protection according to GOST 7746

5P; 10P

Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2

5PR; 10PR; TR?; TRZ; PX; TRX
