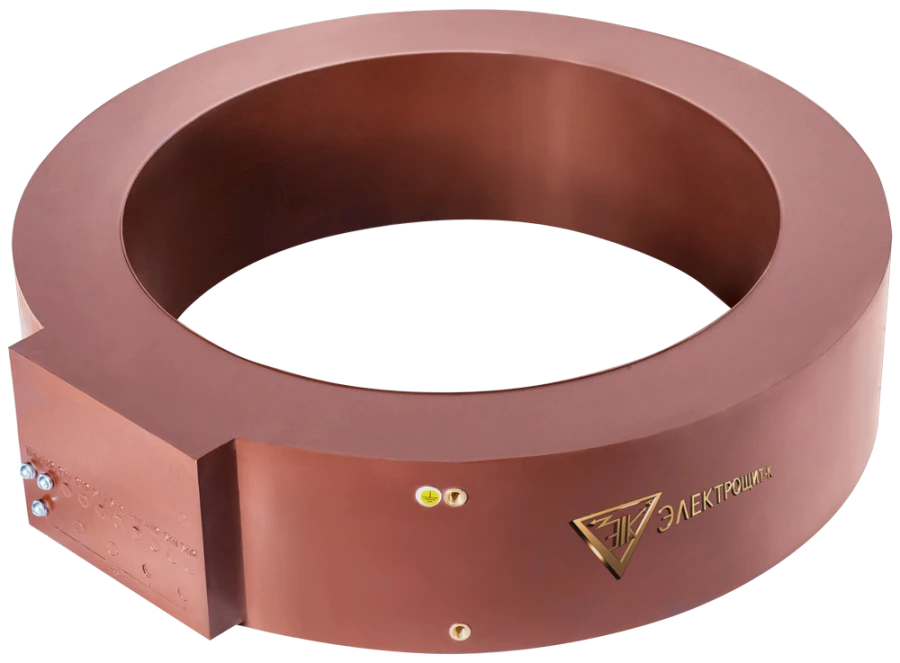

Current transformer TV-EC M2
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
TV-EC M2 current transformers are used for installation in current conduits or busbars. The transformer is mounted inside the conductor casing. The primary winding of these transformers is the current carrying busbar. Insulation is provided by the transformer housing itself, made of compound and the insulation provided for the primary winding of the final product. The secondary winding leads are located on the transformer housing itself in accordance with the design features of the end product.
Specifications
Overall dimensions (Dnar x Din x H) max.
1400x1200x500
Rated secondary current, A
1; 2; 2,5; 5
Rated primary current, A
50 - 45000
Rated voltage, kV
0,66; 3; 6; 10; 15; 20; 24; 27; 35; 110; 150; 220; 330; 500; 750
Highest operating voltage, kV
0,72; 3,6; 7,2; 12; 17,5; 24; 26,5; 30; 40; 126; 172; 252; 363; 525; 787
Accuracy classes of secondary windings for measuring and metering according to GOST 7746
0,2S; 0,2; 0,5S; 0,5; 1; 3; 5; 10
Accuracy classes of secondary windings for protection according to GOST 7746
5P; 10P
Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2
5PR; 10PR; TR?; TRZ; PX; TRX
