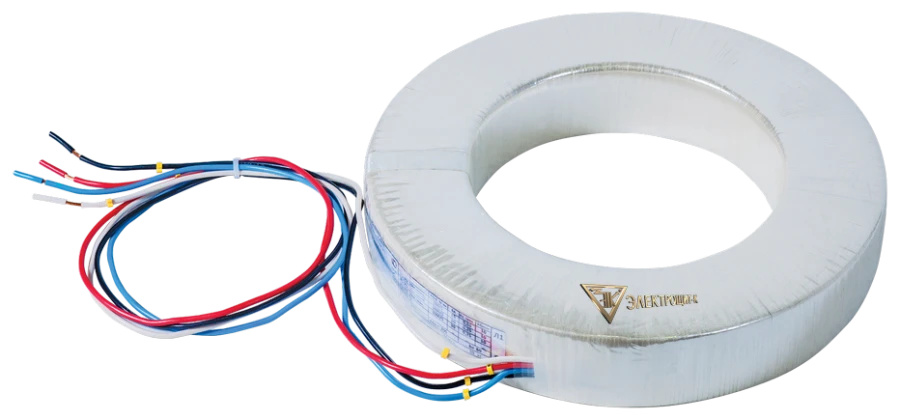

Current transformer TV-EC M1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Current transformers TV-EC M1 are used as component parts of power transformers and vacuum circuit breakers and are installed inside the tank of power transformer or switch casing. The primary winding of these transformers is the input of the power transformer or vacuum circuit breaker. The medium is air or oil. The insulation for the transformer is the insulation provided for the primary winding of the final product. The secondary winding leads are made with flexible wires according to the design features of the end product.
Specifications
Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2
5PR; 10PR; TR?; TRZ; PX; TRX
Accuracy classes of secondary windings for protection according to GOST 7746
5P; 10P
Accuracy classes of secondary windings for measuring and metering according to GOST 7746
0,2S; 0,2; 0,5S; 0,5; 1; 3; 5; 10
Highest operating voltage, kV
0,72; 3,6; 7,2; 12; 17,5; 24; 26,5; 30; 40; 126; 172; 252; 363; 525; 787
Rated voltage, kV
0,66; 3; 6; 10; 15; 20; 24; 27; 35; 110; 150; 220; 330; 500; 750
Rated primary current, A
50 - 45000
Rated secondary current, A
1; 2; 2,5; 5
Overall dimensions (Dnar x Din x H) max.
1400x1200x500
