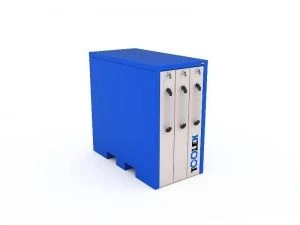

Cupboard TOOLEX 106L/3S

Toolex tool cabinet for CNC machines
Modern production, equipped with CNC machines, cannot do without a large list of interchangeable tools, necessary to perform various tasks in the manufacture of complex parts. Toolex metal cabinets are designed for storing and moving tools for CNC machines (milling, drilling, sheet bending, coordinate punching).


The cabinet and pull-out drivers have a welded construction made of 2.5 mm thick solid steel panels
Driver width 180 mm
Each driver is equipped with an individual lock with a flag locking system and a rotary handle.
All drivers are equipped with a support roller and full extension telescopic slides.
The internal perforation of the drivers allows for the installation of shelves for storing various tools in 25 mm increments
The base has holes for a stacker.


TOOLEX shelves are used for storage:


tools of CNC milling, drilling and turning machines - "TOOLEX 200 LS shelf".
punches and dies for sheet bending tools - "TOOLEX 300 LS Shelf" and "TOOLEX 300 SS Shelf" - which has special perforations to fix the tool in vertical position.
The corresponding TOOLEX 400 (A,B,C,D) LS shelves are used for punches, dies and pullers for the "A, B, C, D" stations of the coordinate punching machines, which have special perforations to hold sets of replacement tools.


Maximum load on the cabinet - 2700 kg


Maximum driver load - 900 kg


Maximum load on the shelf - 100kg
