Available for Import

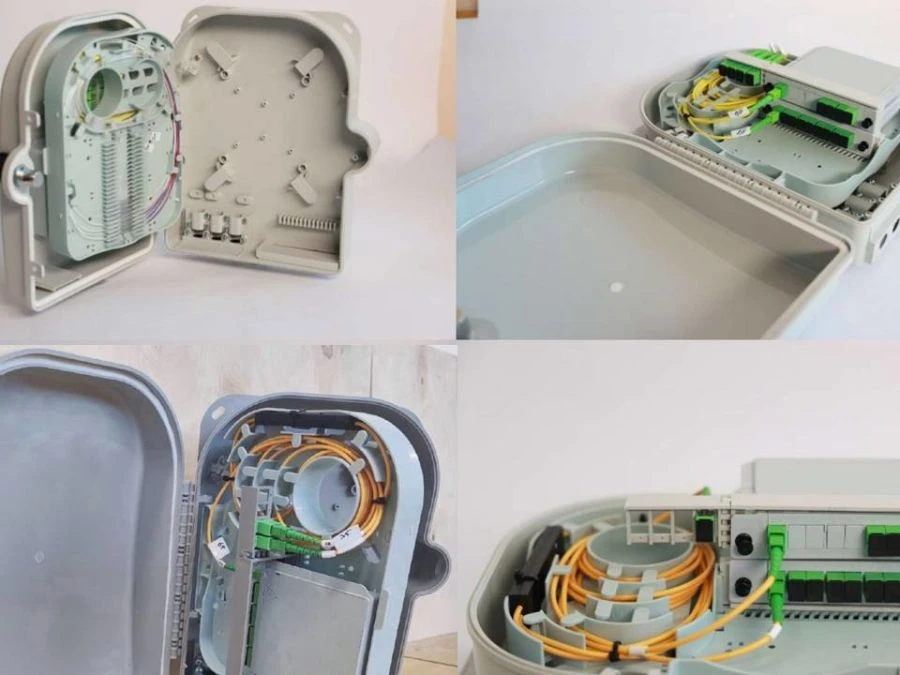

Cupboard PON assembly UFN

Telecom Equipment Accessories

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Specifications

Number of installed optical taps Up to 5 pcs.

Overall dimensions Height 330mm x Width 270mm x Depth 110mm

Operating temperature -40...60 °C

Possibility of additional equipment with bracket for fixing flat couplings to supports Armoured glass

Installable optical dividers of cassette type ( 130x100x25 mm) or Removable panel for SC optical cross-connections up to 2 pcs.

Degree of protection IP65

SC/LC Duplex adapters up to 4 pcs.

Number of KDZS sleeves to be installed Up to 46

Number of installable optical dividers in a mini case (90x20x10 mm) up to 2 pcs.

Number of subscriber cable entries SM1 in 5x2mm size - up to 12 pcs. or SM1 in 3x2mm size - up to 24 pcs.

Permissible diameter of inserted cables Up to 14 mm

Number of line cable entries 3 pc

Mounting Outdoors, including on the walls of buildings, and indoors

Color Grey (any RAL colour is possible)

Material Plastic, resistant to UV and temperature fluctuations

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
