Available for Import

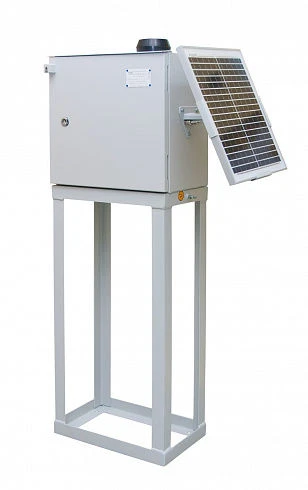

Crossing gassing control system SKZP-A-GK-000-V Solar

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The system is designed for autonomous issuance of emergency warning signalling of the gas pipeline condition (possible gas leaks into the protective cases of the gas pipeline) in the places of convergence or crossing of the gas pipeline with railway, motorway. Data transmission is carried out via wireless cellular communication channels of GSM 900/1800 standard. Functional capabilities: automatic control of gassiness in the places of convergence (crossing) of the gas pipeline with the railway; signalling of the system cabinet door position; automatic issuance of emergency and warning alarms about the state of the gas pipeline and possible gas leaks to the operating organisation and railway station duty officers; access control to the equipment; autonomous operation mode. The system, depending on the modification, is designed for installation on a gas cove.

Specifications

Availability of gas analyzer sensor Built-in

Type of gas analyzer Stationary

Battery recharging solar module

Type of power supply Self-contained (battery)

Power consumption 1, W

Average maximum current consumption in data transfer mode 370, mA

Current consumption in power saving mode 8, mA

Wireless communication standard GSM 900/1800

Operating temperature range From -40 to +60, ?

Type of explosion protection Intrinsically safe electrical circuit

Explosion protection marking 2 Ex ic IIB T3 Gc

Degree of dust and moisture protection IP54

Supply voltage, max. 3.6, ?

Overall dimensions (without pedestal), not more than 650 x 465 x 365, mm

Weight (without pedestal), not more 35, kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
