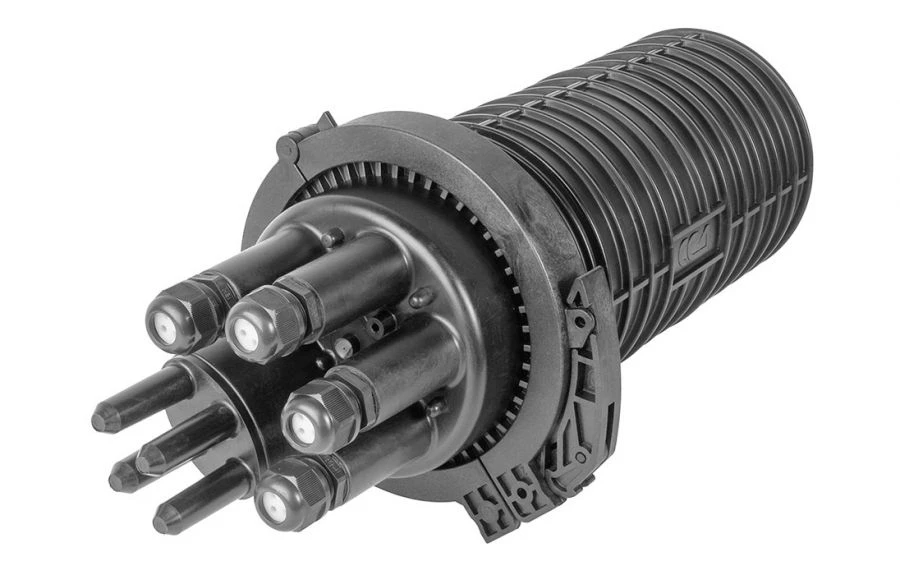

Coupling-cross MKO-B
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed for use in FTTH/PON networks with installation of modular planar optical splitters of the 2nd kasad, for installation of optical cables (OC), laid (suspended) in the open air and inside technical premises (attics, basements).
Sealing of distribution OC is carried out by means of TUT, subscriber drop cables - in turret type fittings.
The coupling design provides:
- input and fastening of 2 dielectric OC with the diameter of the outer sheath up to 21 mm;
- input and fastening of 16 subscriber OK with diameter 2...4 mm;
- possibility to organise "transit" input of one optical fibre optic cable;
- placement of up to 24 optical fibre bundles (KDZS 4525);
- installation of two 1x8 optical modular splitters (or four 1x4 modular splitters);
- installation of 4 optical sockets (adapters) of SC type.
Sealing of distribution OC is carried out by means of TUT, subscriber drop cables - in turret type fittings.
The coupling design provides:
- input and fastening of 2 dielectric OC with the diameter of the outer sheath up to 21 mm;
- input and fastening of 16 subscriber OK with diameter 2...4 mm;
- possibility to organise "transit" input of one optical fibre optic cable;
- placement of up to 24 optical fibre bundles (KDZS 4525);
- installation of two 1x8 optical modular splitters (or four 1x4 modular splitters);
- installation of 4 optical sockets (adapters) of SC type.
Specifications
Degree of protection
IP65
Type or grade of material
Armlen
Equipment
Enclosure, SC/APC adapter, SC/APC pigtail, K24-4525 cassette, KDZS-4525 sleeves, Mounting kit.
Designation
MKO-B
Type
Module
Profile
Cylindrical
Enclosure sealing
Rubber gasket
Sealing of OK inlets
TUT.
Operating temperature
from -60 to +65 °C
Diameter
215 mm
Weight
3,5 kg
Number of splitters
4 pc
Max. number of welded joints
24 pc
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
