Aluminium tip TA 50-10-9 ZETARUS

Cable Accessories

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Aluminium tip TA 70-10-12 ZETARUS Aluminium tip TA 150-16-17 ZETARUS Aluminium tip TA 120-12-14 ZETARUS Aluminium tip TA 35-10-8 ZETARUS Aluminium tip TA 25-8-7 ZETARUS

Aluminium tip TA 185-18-19 ZETARUS Aluminium tip TA 95-12-13 ZETARUS Aluminium tip TA 16-8-5,4 ZETARUS Aluminium tip TA 185-16-19 ZETARUS Aluminium tip TA 240-20-20 ZETARUS Aluminium tip TA 70-12-12 ZETARUS

Description

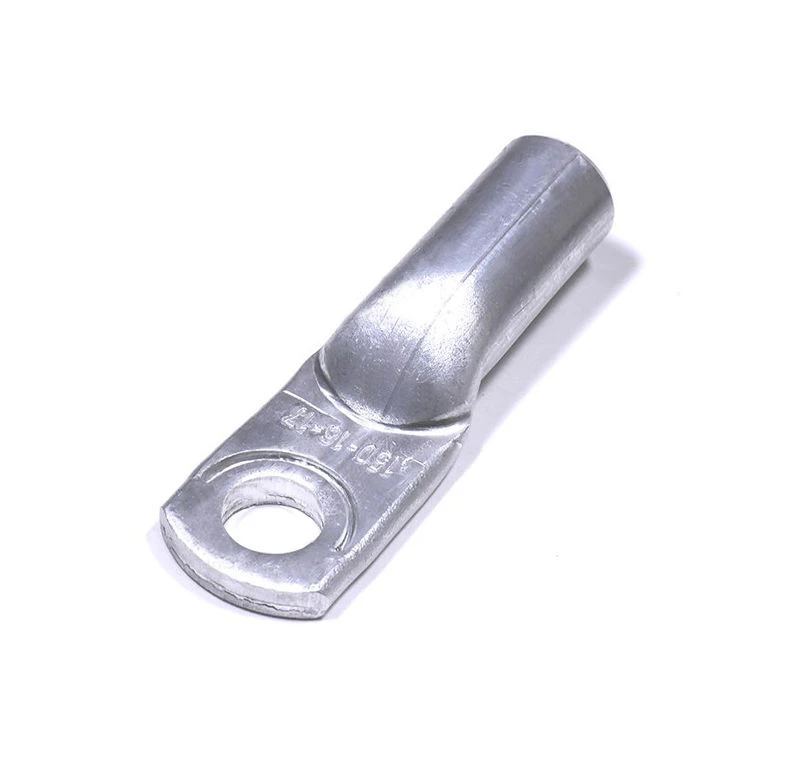

"Aluminium cable termination TA 50-10-9, fixed by crimping, is designed for termination of wires and cables with aluminium conductors of 50 mm2 cross-section. The tip is made of aluminium tube of mark AD1M.The products correspond to: GOST 9581-80The tips are designed for 1,2 class of flexibility of cable cores. For selection of the sleeve of 3 class of flexibility - use the table. Nominal cross-section Contact rod diameter Dimensions, mm d1 d2 I B D L50 mm2M10916362310.575"

Specifications

Availability of coverage no

Connector type Tip

Operating voltage 1...35 kV

Nominal cross-section SBVVBG mm2

Inner diameter 9 mm

Contact rod diameter 10 mm

Inner shank diameter 9 mm

Climatic version UHL 3

Cable cross-section 2, 3 flexibility class SBVVBG mm

Material Aluminum
