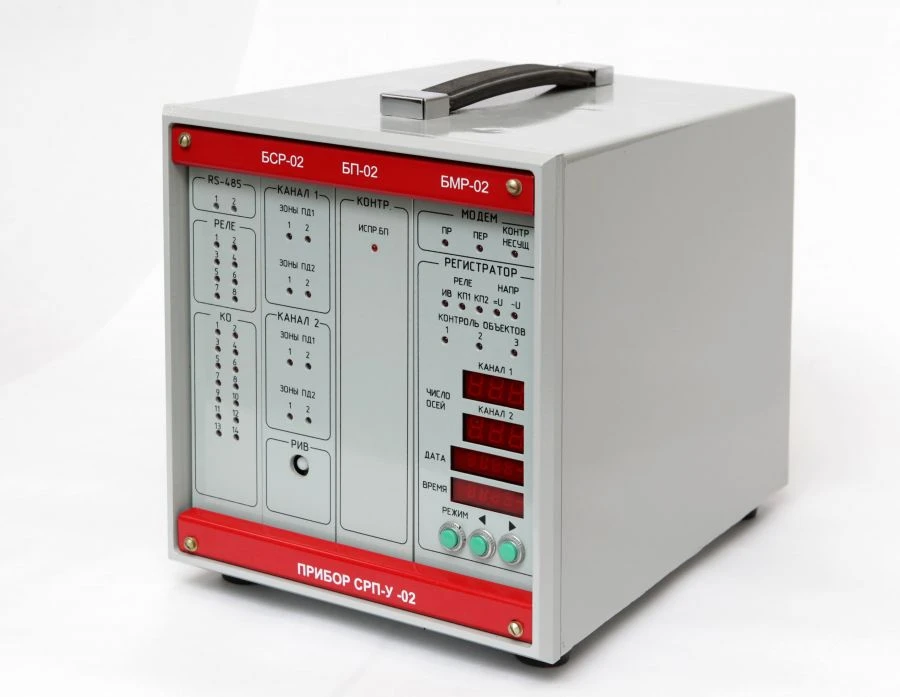

Counting and solving device SRP-U

The device is designed for counting and comparing the number of axes traversed over the track sensors, taking into account compliance with the algorithm of traversal, as well as for generating a signal about the freedom/occupancy of the controlled section.
SRS-U is made in a metal case and consists of blocks (BP, BR, BMR, BSR), on the front panels of the blocks there is an indication of the state of the controlled devices.
On the back side there are sockets for connection of power supply, grounding and circuits for linking with external devices.
SRP-U is manufactured in two modifications: with expansion unit BR (UZHDA-03-14.001-02) and without BR (UZHDA-03-14.001-02.01).
Overall dimensions are 210x250x340 mm.
SRS-U can be placed in a relay cabinet, in a heated or unheated room or in a transportable module.
