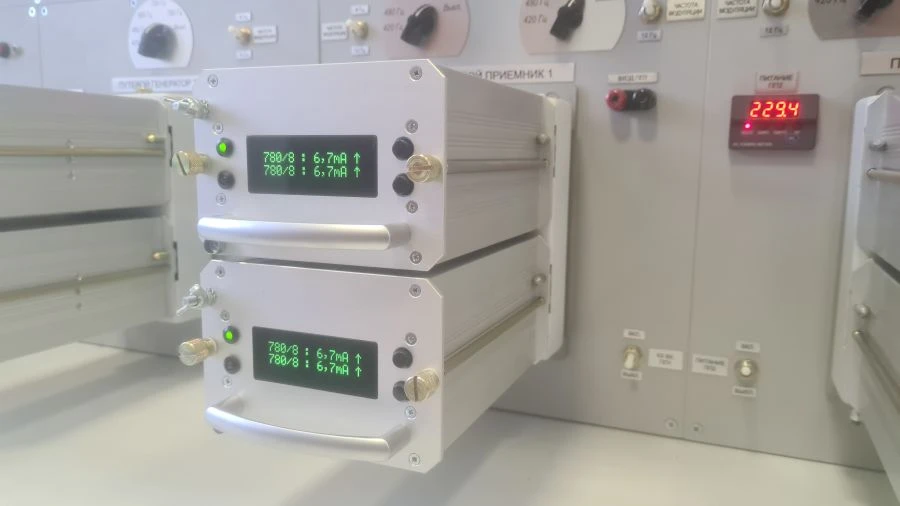

Universal travelling receiver with redundancy (PP-01/02R)

Railway & Traffic Control Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Support of rail circuit operation in terms of: receiving TRC signal; control of track relays

Technical Specifications

Number of independent receive channels	2
Frequency of THz, carrier	420/425, 480/475, 560/565/570/575/580, 720/725, 775/780 Hz
Modulation frequency	8/12 Hz
Carrier frequency setting error	Lower/upper deviation not more than 1 Hz
Modulation frequency setting error	Lower/upper deviation not more than 0.3 Hz
Nominal input impedance	1 ohm with an upper/lower tolerance of 1%
Rated sensitivity for each channel (load turn-on voltage)	4,7 mV with permissible upper/lower deviation of 0,5 mV
Rated load-break voltage, per channel	3.3 mV with an upper/lower tolerance of 0.3 mV; return factor of 0.7 mV with an upper/lower tolerance of 10%
The maximum effective value of the TRC signal voltage at the tuning frequency, measured at the receiver input shunt, at which	98 mV
Receiver operation delay at input signal change at tuning frequency from 0 to switch-on voltage	Not more than 0,6 seconds
Delay of receiver switch-off when input signal at the tuning frequency changes from the switch-on voltage to 0	Not more than 0.9 seconds
Receiver provides control of two track relays of ANSH2-310 or ANSH2-1230 type, with equivalent resistance of winding constant	310 ohm
Receiver output voltage (supplying the trip relay)	5V with an upper/lower tolerance of 0.5V
Type of power supply	Single-phase, 50 Hz AC with 1 Hz upper/lower permissible deviation
Operating range of supply voltage variation	187...242 V
Power consumption	No more than 30 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
