Available for Import

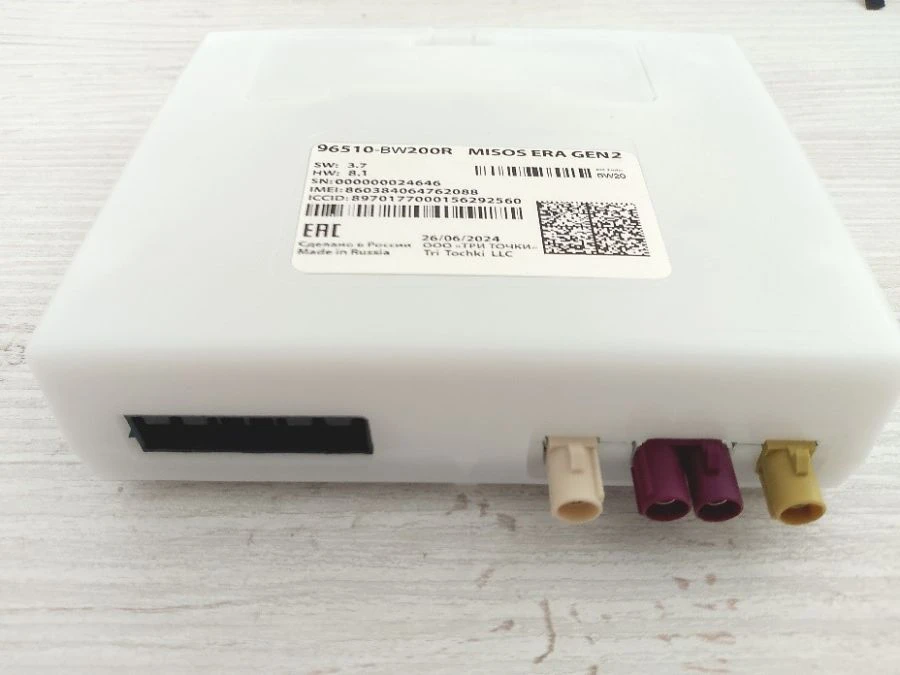

Control unit of the system of emergency call for emergency services, model "MISOS ERA GEN2".

Emergency Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The control unit provides transmission of a message about the vehicle in case of road traffic and other accidents, in automatic and manual mode, and provides two-way voice communication with emergency operational services through the networks of mobile operators in the territory of the Russian Federation. When a road traffic accident occurs, in automatic or manual mode, the minimum required data set (MND) about the vehicle is transmitted to the operator of the emergency operational service. The MND is transmitted by means of a tone modem. If the MND has not been transmitted via tone modem within 20 seconds from the start of transmission, the device automatically transmits the MND via SMS. MISOS ERA GEN2" Control Unit is powered from the on-board network of the vehicle or the built-in battery, if necessary

Technical Specifications

Rated supply voltage	B1/B8 2100/900 MHz V
Permissible supply voltage range	8...16 V
Service life	5 a
GSM 900 transmitter power - class 4	2 W
GSM 1800 transmitter power - class 1	1 W
UMTS900 transmitter power - class 3	0.25 W
Radio channel structure	Multi-slot mode, class 10
Number of GLONASS/GPS receiver channels	at least 32
Frequency of location data update	1
Resistance to ambient air temperature when powered from the on-board network	-40...85 °C
Resistance to ambient air temperature when powered from backup battery, C	-20...85 °C
Overall dimensions	38 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
