Control cables with copper conductors, KPCsKbPng(A)-HF grade

Control Cables Flameproof

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Control cables with copper conductors KVVGng(A)-FRLSLTx Control cables with copper conductors, KPCSbShvng(A)-FRLS grade Control cables with copper conductors, KPSBBPng(A)-FRHF grade Control cables with copper conductors, KPCSBShvng(A)-FRLS grade Control cables with copper conductors, KPKbPng(A)-FRHF grade

Control cables with copper conductors KVVGGng(A)-LSLTx Control cables with copper conductors, KPSVGng(A)-FRLS grade Control cables with copper conductors, KPBBPng(A)-HF grade Control cables with copper conductors KVVGEng(A)-LSLTx Control cables with copper conductors, KPSKbShvng(A)-LS grade

Description

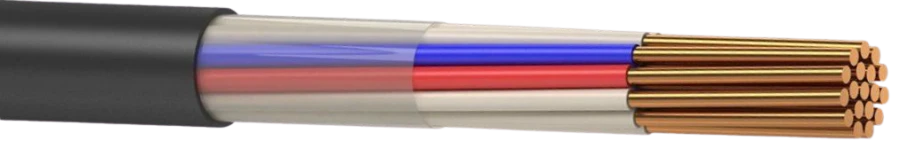

Control cables with copper conductors with nominal cross-section from 0, 75 to 6, 0 mm², with the number of cores up to 61, with insulation and sheathing made of PVC plasticates in wire armour, designed for connection to stationary electrical devices, apparatus, assemblies of electrical switchgears with rated alternating voltage up to 660 V of frequency up to 100 Hz or direct voltage up to 1000 V, when used in non-explosive and explosive zones, as well as in underground workings, can also be laid in rooms, canals, tunnels, earth (trenches), including places confirmed to be exposed to explosion hazard. including places confirmed to be exposed to stray currents.

Specifications

Insulation material crosslinked polyolefin

Number of cores 4...61 pc

Sheath material Polymer compositions; halogen-free

Nominal voltage 660 V

Climatized version version c; placement category 1-5 (according to gost 15150-69)

Core material Copper

Mark ????????(?)-HF

Twisting insulated conductors twisted into a core

Design feature wire-armored

Core cross section 0,75-10 mm2

Minimum cable installation temperature minus 15 °C

Operating temperature -50 to +70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
