Control cables AKVVVGz

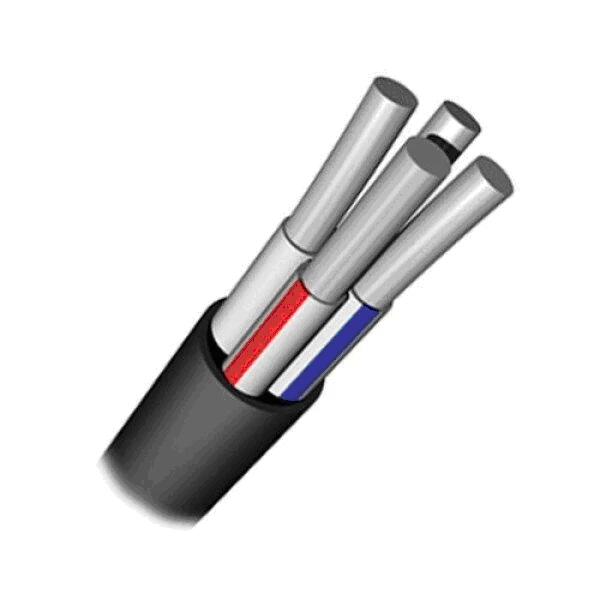

1. Conducting core - single-wire round, 1 class according to GOST 22483 from soft aluminium (nominal cross-section from 2,5 to 10,0 mm2) wire. 2. Core insulation is made of polyvinylchloride plasticate. 3. Core - insulated cable cores twisted by twisting. 4. Sheath - made of polyvinyl chloride plasticate. Cables are designed for transmission and distribution of electrical energy and electrical signals in stationary electrical installations that require cable sealing at entry, at AC voltage up to 660 V with frequency up to 100 Hz or DC voltage up to 1000 V.
