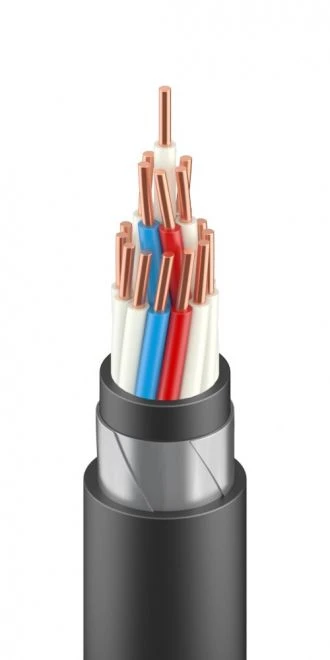

Control cable with plastic insulation with protective covers of BbShv, BbShvng type, mark: KVBBBShvng(A).

Control Cables Flameproof

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Control cable with plastic insulation in polyvinylchloride sheath in cold-resistant version, grade: KVBSHV-XL Cable with sheathed insulation in a protective hose made of polyvinylchloride plasticate of reduced flammability in cold-resista

Description

Cable control with copper conductive cores with cross-section from 0,75 to 10,0 mm2 with the number of cores from 3 to 61 with insulation made of polyvinylchloride plastic, protective cover type BbShv, in a protective hose made of polyvinylchloride plastic of reduced flammability. Designed for fixed connection to stationary electrical devices, apparatuses, clamp assemblies of electrical switchgear with rated AC voltage up to 660 V frequency up to 100 Hz or DC voltage up to 1000 V.

Specifications

Operating temperature range

-40...50 °C

Rated AC voltage

660 V

AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores

2500 V

Electrical resistance of insulation of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables with

Electrical insulation resistance of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables with cro

Electrical resistance of insulation of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables with

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
