Control cable (flexible) with polyvinylchloride insulation and sheath, grade: KGVEVzng(A)

Specialty Electrical Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Control cables (flexible) with polyvinylchloride insulation and sheath, mark: KGVEVzng(A)-LS Control cable (flexible) with polyvinylchloride insulation and sheath, grade: KGVEVz

Description

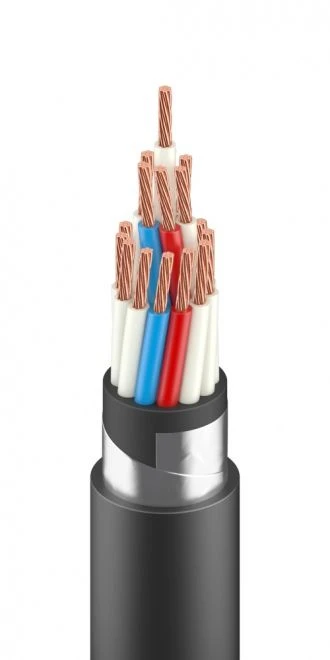

Flexible cable with insulated copper conductive cores with cross section from 0,5 to 16,0 mm2, with number of cores from 2 to 37 with insulation and sheath made of polyvinylchloride plasticate of reduced flammability, with screen made of alumoflex, with core filling. Designed for fixed installation of power circuits, control circuits and local lighting on machines and mechanisms at AC voltage up to 660V/50Hz or 1000V DC.

Specifications

AC voltage test with nominal frequency of 50 Hz for 1 minute between conductors for cables with AC voltage

3500 V

AC voltage test with nominal frequency of 50 Hz for 1 minute between conductors for cables with AC voltage

3000 V

Rated AC voltage

660...1000 V

Operating temperature range

-40...60 °C
