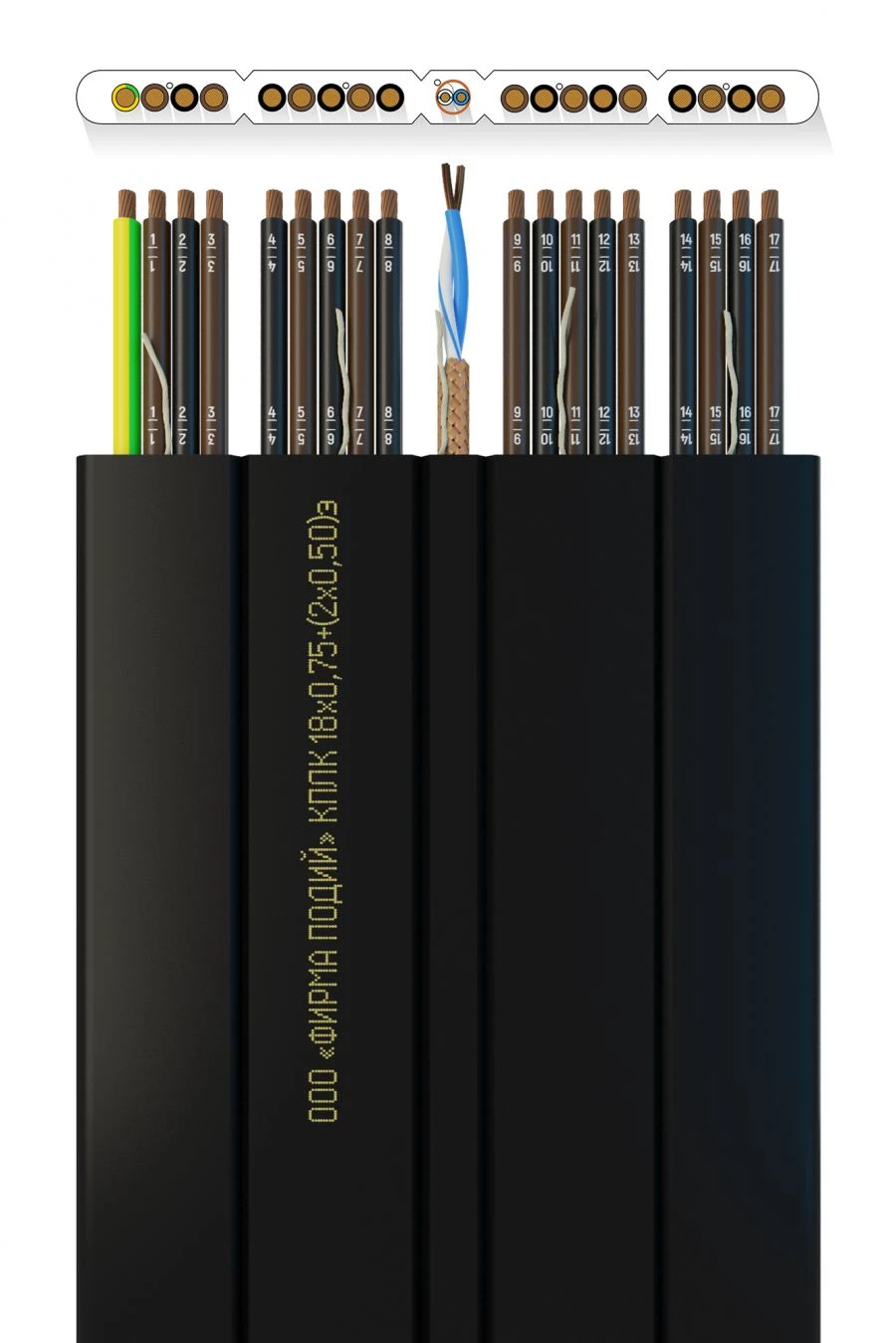

Lift flat combined cable KPLK 18x0,75+(2x0,50)e

Cable flat lift combined flexible with copper main conductive conductors in PVC plasticate insulation and copper auxiliary conductors (single conductors in the screen, symmetrical pairs in the screen and without the screen, as well as quadruplets) in PVC plasticate, block copolymer or polyethylene insulation; in a common sheath of PVC plasticate.
The cable is designed for operation in passenger and freight lifts for general purpose at rated voltage up to 300/500V AC nominal frequency of 50 Hz on the main cores and up to 145V AC inclusive on the auxiliary cores, at ambient temperature from minus 10 °C to plus 50 °C. .
