Control and Measurement Information Points for Monitoring and Regulation of Electrochemical Protection

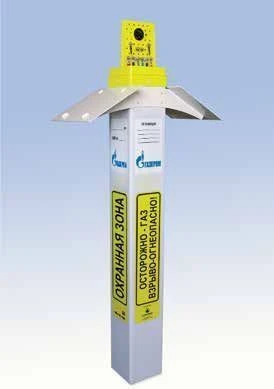

Designed for control and regulation of electrochemical protection parameters, as well as designation of pipeline routes. The instrumentation is made in the form of a hollow PVC rack of square cross-section (standard version 200 mm), on the upper end of which is fixed a terminal terminal made of polycarbonate, to the terminal board on 44 terminals of which cables with cross-section up to 35 mm2 are connected. From above, the terminal board and the internal cavity of the instrumentation is closed with a cover which acts as a signal hood (red, blue, green or yellow colour). In the buried part of the instrumentation unit there are holes for the anchoring device preventing free removal of the rack from the ground, as well as a technological window for the entry of EHS cables, providing standardised bending of cables during their installation. It is possible to place additional equipment on the terminal board inside the instrumentation. An electrical cabinet for additional equipment can be attached to the rack from the outside.
