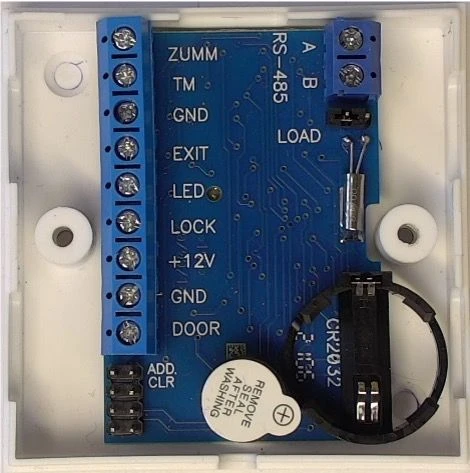

Network Access Control Controller Z-5R (model Net 16000)

Available for Import

Network Access Control Controller Z-5R for Effective Access Management

Low-Voltage Electrical Panels

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use in access control and management systems (ACS) as stand-alone and as part of a network. On connection and work in stand-alone mode controller Z-5R (mod. Net) is similar to the controller Z-5R . Connection to the network is made via RS-485 (two-wire connection). Possibility of software configuration of the controller in the Guard Light software.

Specifications

Protocol for connecting an external reader (contactor)

IButton (Dallas Touch Memory), emulation DS1990A,Wiegand 26

Maximum number of keys/cards

16336 pcs

Event memory capacity

8192

Sound/light indication

Armoured glass

External LED and external buzzer control

Armoured glass

Output for lock connection

TIR transistor

Switching current

5 A

Jumper for selecting the lock type

Electromagnetic, electromechanical

Setting the duration of lock opening

0.1...10000

DC supply voltage

8...18 V

Current consumption

30 mA

Protection against incorrect switching on

Got it

Dimensions

65x65x20 mm

Housing material

Plastic

Network interface

RS-485

Maximum network line length

Up to 1200 meters

Maximum number of controllers in the line

255 pcs

RS-485 network communication speed, baud rate

19200/57600(auto)

Factory setting of the network address

Backup power supply for watches

Cr2032

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
