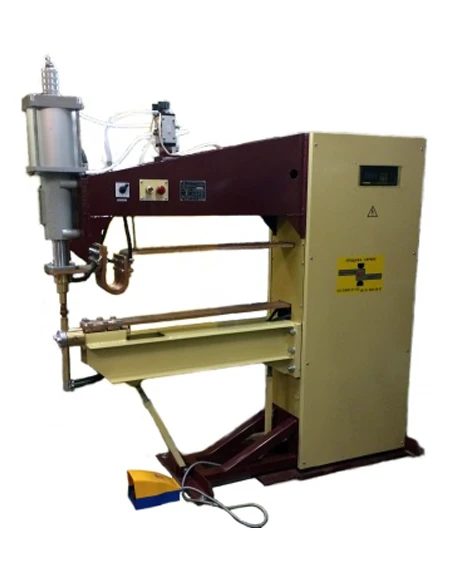

Contact Spot Welding Machine MT-2103L for Low Carbon Steel Welding

Machine contact spot welding MT-2103L UHL4 is used for AC welding of parts made of low-carbon steels. Parts intended for welding should be free of oxide films and contaminants that prevent welding. The MT-2103L machine should be operated in closed premises at an altitude of not more than 1000m above sea level at the temperature of cooling water from plus 5°C to plus 25°C. The machine is manufactured in UHL4 version for operation in areas of temperate climate at ambient air temperature from plus 1°C to plus 35°C with relative humidity not more than 80% at temperature plus 25°C. Kind of welding current-variable; Drive welding force-pneumatic; Nominal compression force 2200 daN; Control system - welding controller on a choice; Welded thicknesses: Low-carbon steel - from 1,0+1,0 to 7,0+7,0; Rebar class A400C, A500C - from 6,0+6,0 to 22,0+22,0
