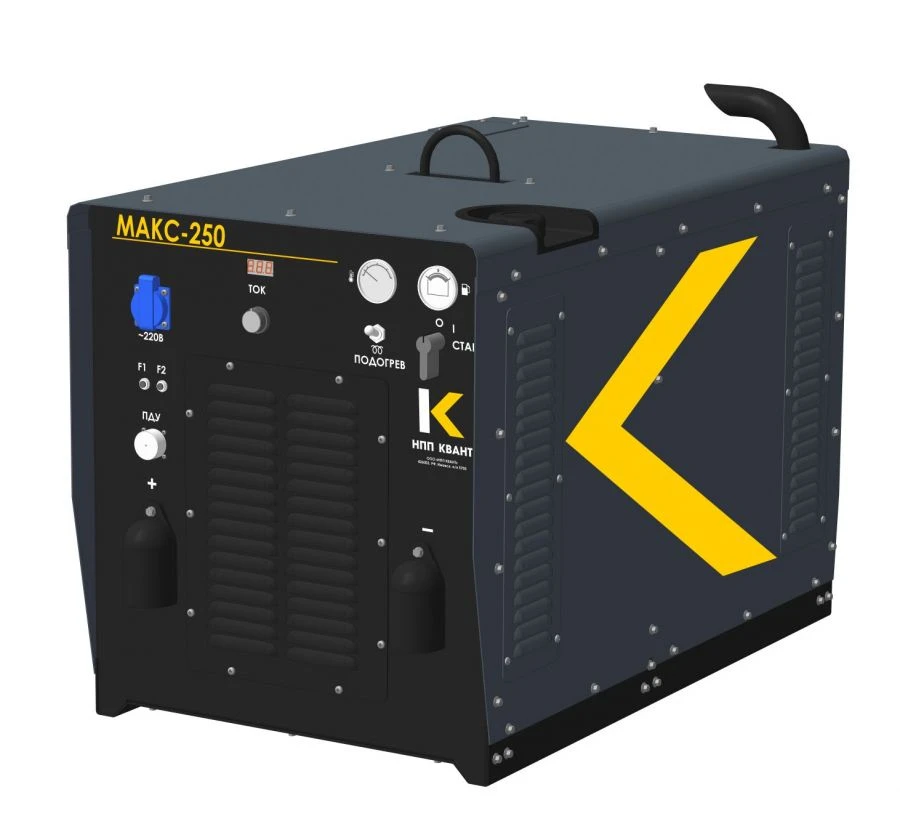

MAX-250 Welding Machine for Arc Welding and Cutting

Available for Import

MAX-250 Welding Machine for Arc Welding, Cutting, and Cladding Applications

Electric Welding Machines

Manufacturer: Kvant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed for use as an autonomous welding source for manual and semi-automatic arc welding, cutting and surfacing of metal with direct current. The unit is manufactured in climatic version "U" of placement category "1" according to GOST 15150 and is designed for outdoor operation in field conditions. It provides nominal parameters when working at an altitude not more than 1000 m above sea level at ambient air temperature from minus 60 °?

to plus 40 °? and relative air humidity not more than 80% at 15 °?. It has all necessary elements for operation in field conditions: without access to power supply and under the influence of various climatic factors.

The unit is used in the construction of pipelines, road laying, development of new fields, repair work, etc..

Specifications

Type of product according to PP RF 616

Arc welding equipment

Power

14 kW

Rated welding current

250 A

Operating voltage

32 V

Minimum welding current

30 A

Welding current adjustment range

30...250 A

Service life

5 year

EFFICIENCY

80 %

Insulation class

Protection class

IP23 S

Switching modes

Armoured glass

Magnetic current compensation mode

Armoured glass

Drive motor

Armoured glass

Converter (2 posts)

Additional 220V power supply

Armoured glass

220V auxiliary source voltage

230 V

Power of auxiliary 220V source

5 kW

Weight

150 kg

Dimensions

900x550x700 mm

Mark

MAX-250

Type

welding unit

Equipment

MAKS-250; Technical description, passport for MAKS-250; Operating manual for the engine; passports and operating manuals for MAKS-250; Remote control set (1 remote control for welding); Set of consumables for the engine for 4 thousand engine hours (fuel, o

Load Duration (LL)

100 %

Type of welding voltage regulation

smooth

Contact welding

Manual arc welding

Armoured glass

argon-arc welding

Armoured glass

Semi-automatic welding

Armoured glass

Automatic welding

Armoured glass

Type of welding current

permanent

Maximum welding current

250 A

No-load voltage

Flat grinder, Specialised grinder V

Height

700 mm

Width

550 mm

Length

900 mm

Operating modes (continuous/pulse)

continuous

Maximum power consumption, kW

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
