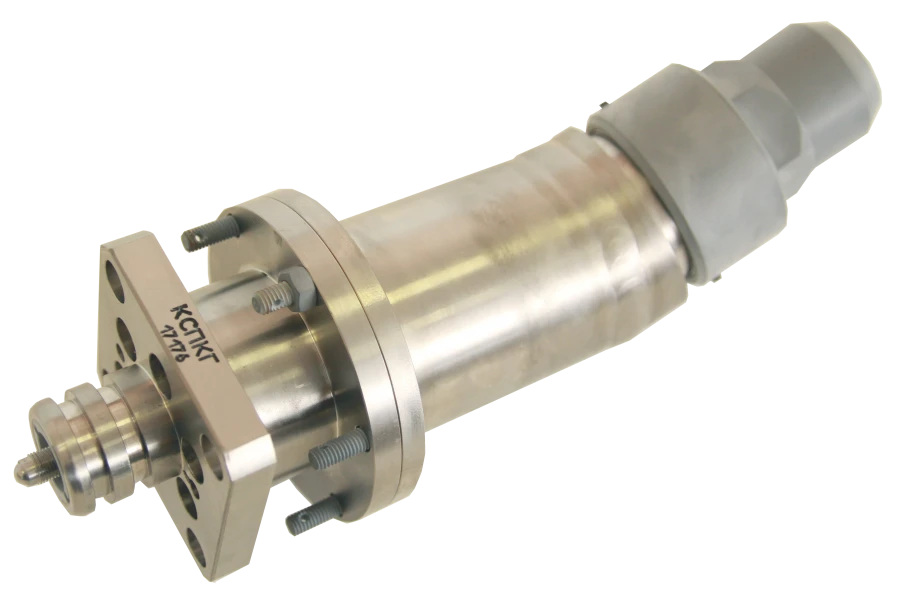

Contact position switch hermetically sealed KSPKG

KSPKG are designed to control the position of moving links of mechanisms and valves kinematically connected with the stem of signalling devices.

Specifications:
Drive element-Stem

Design features of the stem:
- type of tip-ball;
- number of fixed positions-2;
- initial position - extended;

Stem displacement, mm
- working-2±0,45;
- differential-0,5;
- additional (after direct actuation of contacts)-1,5;

Stroke speed, mm/s-1-300
Number of switched circuits-2
Switchable loads:
- direct current (at voltage)-0,001-1A (3-48V)
- alternating current (at voltage)-0,02-1A (15-220V)

Hydrostatic pressure, MPa, not more than-6
