Available for Import

Central control module of automatic voice announcement system RECOR CMU-200

Security and Fire Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

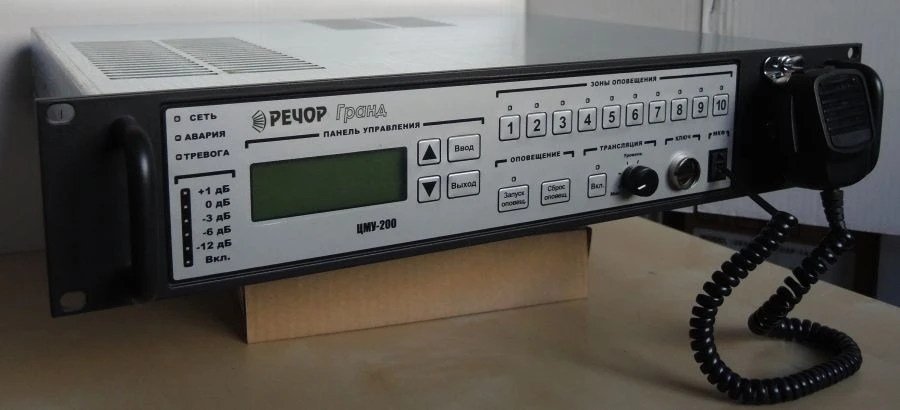

Central control module for creation of notification and evacuation control systems (SOUE) of 3 and 4 types. Fire control device in accordance with GOST R 53325-2009. It has a built-in amplifier 200W, a switchboard for 10 zones of notification, tangent microphone T-43, input signals GO, output for notification of on-duty personnel, LCD display, programmable 5 scenarios of notification, housing for installation in 19' Rack-rack.

Technical Specifications

Number of fire alarm and activation inputs	10 pc
Number of connected public address lines (not including duty personnel line)	2 pc
Type of supported non-volatile memory (memory card types)	MMC, SD, SDHC
Maximum memory card capacity	32
Rated output power	200 W
Nonlinear distortion at rated output power, not more than	1 %
Line output voltage at rated output power	100 V
Amplifier bandwidth, 3 dB level	70...20000
Duty personnel line load capacity	10 W
Nominal signal level on line inputs	0.2 V
Input impedance rating for line inputs	600 ohm
Number of stages of microphone headset sensitivity adjustment	10 pc
Number of stages of volume control in broadcast mode	10 pc
Number of regulation steps independently for each zone	4 pc
Number of contact groups for connection of fire evacuation actuators type ?? "dry contact"	2 pc
Number of contact groups for connection of fire evacuation actuators of type NC "dry contact".	2 pc
Switching load limit for switching on of fire evacuation actuators	5A, 240V
Switching load limit when switching on the external line of light boards	5A, 240V
Type of external contactor for activation of fire alarm inputs and triggering of CS notification	"dry contact"
Power consumption from 220 V power supply in standby mode, not more than	10
Power consumption from 220 V power supply in the mode of sound signal broadcasting, not more than	250
Rated voltage of the backup power supply	NZ-150-14,5 V
Current consumption from the backup power supply in the standby mode, not more than	0.2 A
Maximum current consumption from the backup power source	5 A
Open-circuit and short-circuit monitoring of input fire alarm loops, integrity monitoring of broadcast lines, connected	availability
The unit automatically switches to the backup power supply when the main power supply fails and automatically returns to the bac	availability
Resistance between the protective earth clamp and every metallic part of the device which can be touched.	0.1 ohm
Insulation resistance of power supply circuits from the earthed parts of the device, not less than	50 megohms ohm
Electrical insulation between mains circuits and earthed parts of the device withstands without breakdown for 1 m	1.5 kV Ampl.
Level of acoustic noises not more than	25 dBA
Designs of component parts of the device comply with the requirements of GOST 28601.3, and provides its installation in 19-inch	Compliance
Overall dimensions (length x height x depth) of the device components do not exceed	483 x 88.5 (2U) x 430 mm
Weight of the device does not exceed	10 kg
Assignment	Automatic control of speech warning and evacuation control system RECOR
