Available for Import

Complex for electro-termination of FORMULA BiS series microchips

Advanced Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

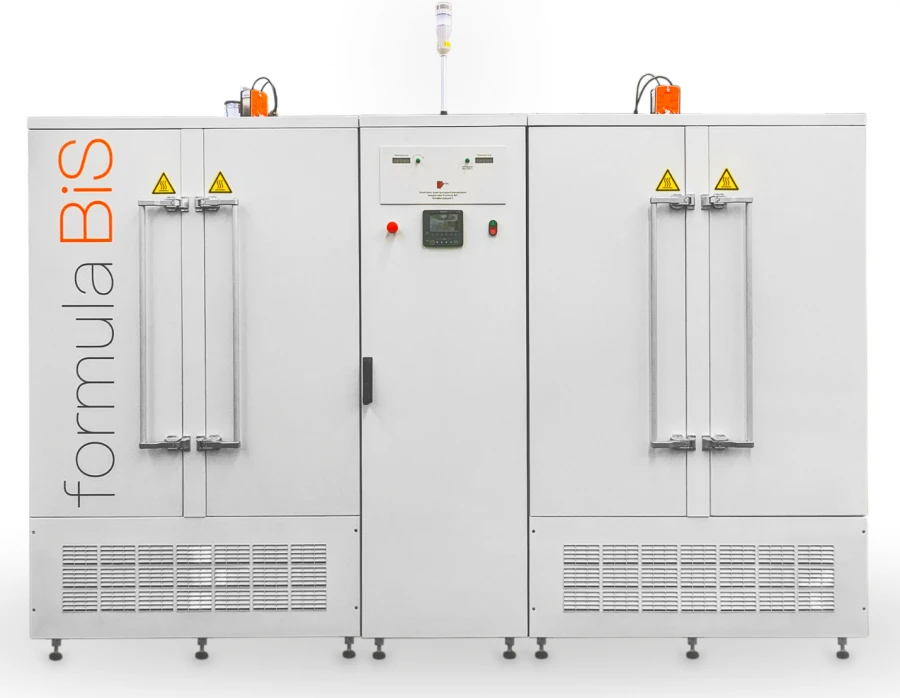

The FORMULA BiS series electro-thermotracing (ETT) complexes are designed for testing integrated circuits (ICs) in accordance with the requirements of the operational process flow charts for the corresponding groups of ICs according to OST 11 073.013 2008 using the following methods: - Electro-termination; - Failure tests; - Exposure to elevated temperature of the working environment. The peculiarity of FORMULA BiS ETT complexes is the modular architecture, which allows to configure the test equipment in accordance with the Customer's tasks, both in terms of performance requirements and requirements to electrical modes. FORMULA BiS is a modular type test system, which includes an Electronics Module and one or two Modules of a test chamber with thermal stabilisation system (CIT Module). The photo shows the FORMULA BiS ETT System in configuration with two KIT Modules.

Technical Specifications

Reproducible temperature range	From 55 to 150 °C
Total time to reach the set thermal mode, taking into account temperature stabilization in the useful volume of the heat chamber	Flat grinder, Specialised grinder
Time to reach the limit values of the reproducible temperature, not more than	60
Time of stabilization of the set temperature mode after reaching the reproducible temperature, not more than	30
Permissible temperature deviation in the useful volume of the chamber from the set point in steady state mode at temperatures up	± 3 °C
Permissible temperature deviation in the usable volume of the chamber from the setpoint in steady-state mode at temperatures fro	± 5 °C
Maximum temperature gradient in the working volume, max.	10 °C
Instability of steady-state temperature maintenance	±2 °C
Maximum number of load boards (test boards) placed in the test chamber of the KIT Module	32 pc
Type of product according to PP RF 616	Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
