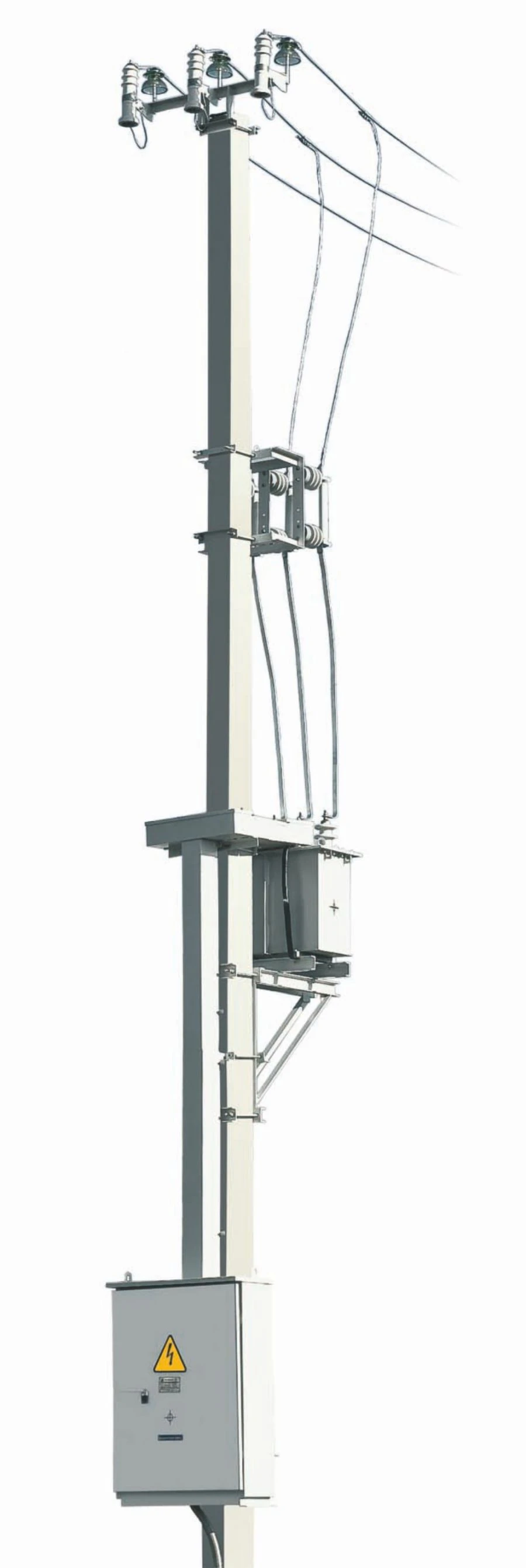

Complete transformer substations of pole type on one post SV-105 (SV-110) and mast type on four consoles PT-43 m

Nominal power: from 25 to 250 kVA
Rated HV voltage: 6, 10 kV
Rated LV voltage: 0,4 kV
Operating frequency: 50 Hz
Climatic design: UHL1 (-60°C to +40°C), industrial atmosphere type II (according to GOST 15150-69)
KTPs are suitable for operation in ice-covered conditions with ice thickness up to 20 mm and wind speed up to 15 m/s (with wind speed head 146 Pa), and in the absence of ice - with wind speed up to 36 m/s (with wind speed head up to 800 Pa).
Altitude above sea level: up to 1000 m
Protection degree of the KTPP shell: IP23 (according to GOST 14254-96).
Number of outgoing lines on the 0,4 kV side: up to 4.
Warranty on supplied products: 3 years from the date of commissioning, but not more than 4 years from the date of shipment.
Installed service life of KTPP: not less than 25 years.
