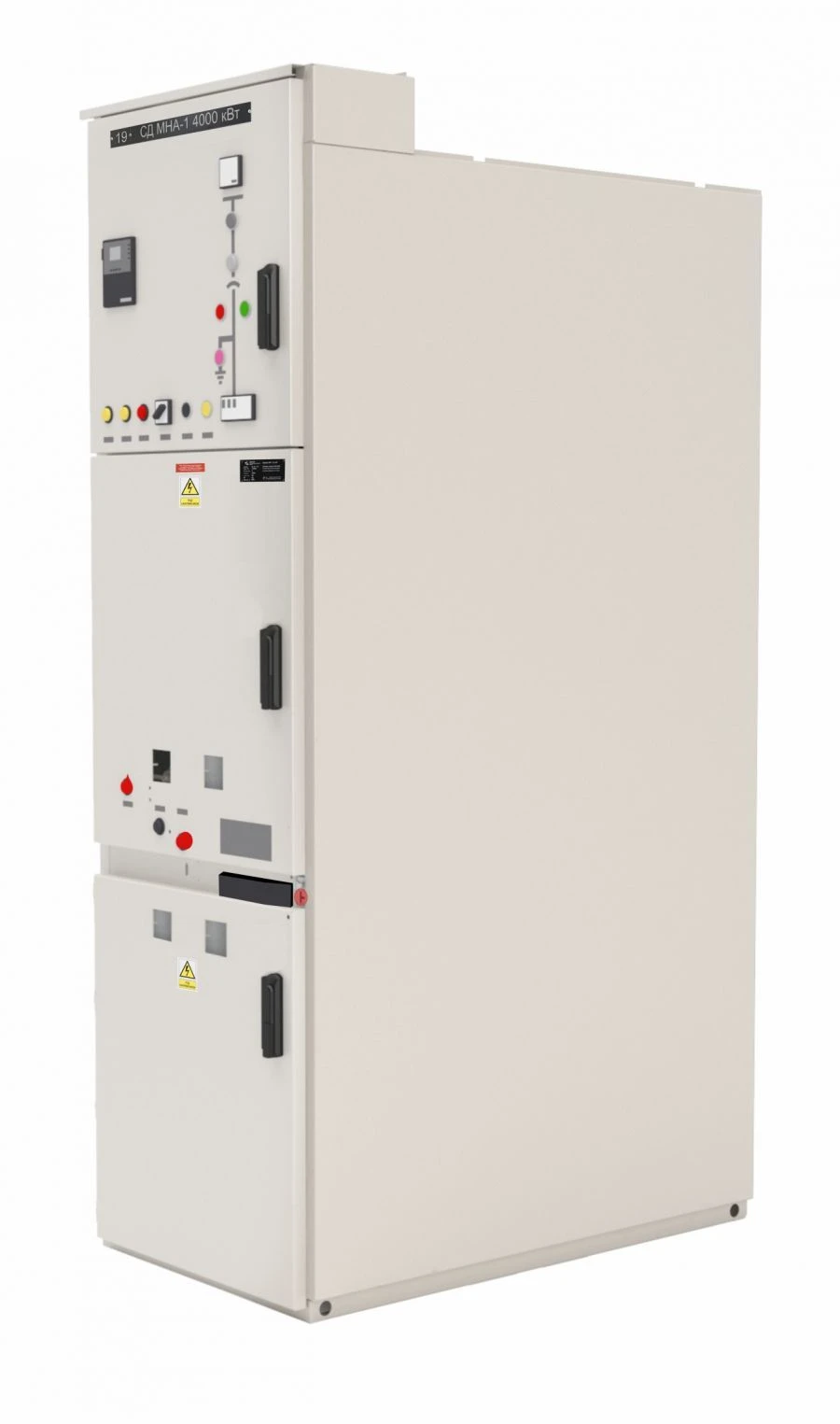

Complete switchgear "Classic" series D-12P

High Voltage Switchgear

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Komplete switchgear "Classics" series D-12P is designed to receive and distribute electrical energy three-phase alternating current frequency 50 Hz voltage 6 (10) kV in networks with isolated or earthed through arc-extinguishing reactor or resistor neutral.
Complete switchgear "Classics" series D-12P have the following advantages: wide range of operating parameters; high localisation capacity; safe maintenance; convenient installation and maintenance; possibility of manufacturing of cabinets of single and double-sided service; case of high quality steel with aluzinc coating; full grid of schemes of main circuits with possibility of implementation of non-standard solutions; wide range of applied equipment; possibility of connection to any existing switchgear; possibility of connection to any existing switchgear.

Specifications

Height 2320...2470 mm

Width 1000 mm

Length 1450 mm

Nutrition no

Rated voltage (line voltage) 6 kV

Highest operating voltage (line voltage) 7.2 kV

Rated current of main circuits of switchgear cabinets 630 A

Rated current of busbars 630 A

Rated tripping current of the circuit breaker integrated in the switchgear cubicle 20000 A

Thermal resistance current of main circuits of switchgear cubicles 20000 A

Thermal endurance current flow time of main circuits 3

Grounding circuit thermal resistance current flow time 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
