Communication device with the object "Well-2" (USO-2)

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

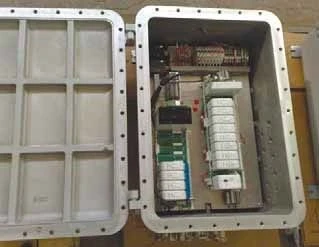

The device for communication with the object "Well-2" (USO-2) (hereinafter referred to as USO) is designed to perform the function of collecting information on the state of technological objects and remote control of shut-off and control valves at gas well clusters. ODR is a component for automated process control systems.
ODR is used at oil, gas and gas condensate production facilities as part of gas well tie-in modules. They are placed in the immediate vicinity of gas wells.
In accordance with the technical specification for the system development, the delivery set includes:
- control cabinet(s);
- power supply cabinet(s);
- a set of operational documentation in accordance with the list of operational documents for a particular ODR version.
The complex of ODR technical means is based on serially produced controllers and input-output modules GE IP PAC8000 Process I/O, TREI-5B-05 from JSC "TREI" or MFK1500 from GC TE....

Technical Specifications

Service life, at least	15 a
Voltage	220 V
Instrument power supply type	Power supply parameters (determined in accordance with the technical specification for the system): ? 220 V AC with 50 Hz frequency; ? 220 V DC; ? 110 V DC; ? 24 V DC.
Degree of protection against external influences	IP54
PC communication interface	Standard interfaces and protocols are used to communicate ODRs with control systems.
Installable non-volatile memory capacity, not less than	128
Limits of permissible basic absolute error of measurements	0,5
DC voltage measurement ranges (channels 1-3)	220 V
Dimensions (DxWxH), mm	Overall dimensions and mass of the ODR are determined in accordance with the technical specification for the system.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
