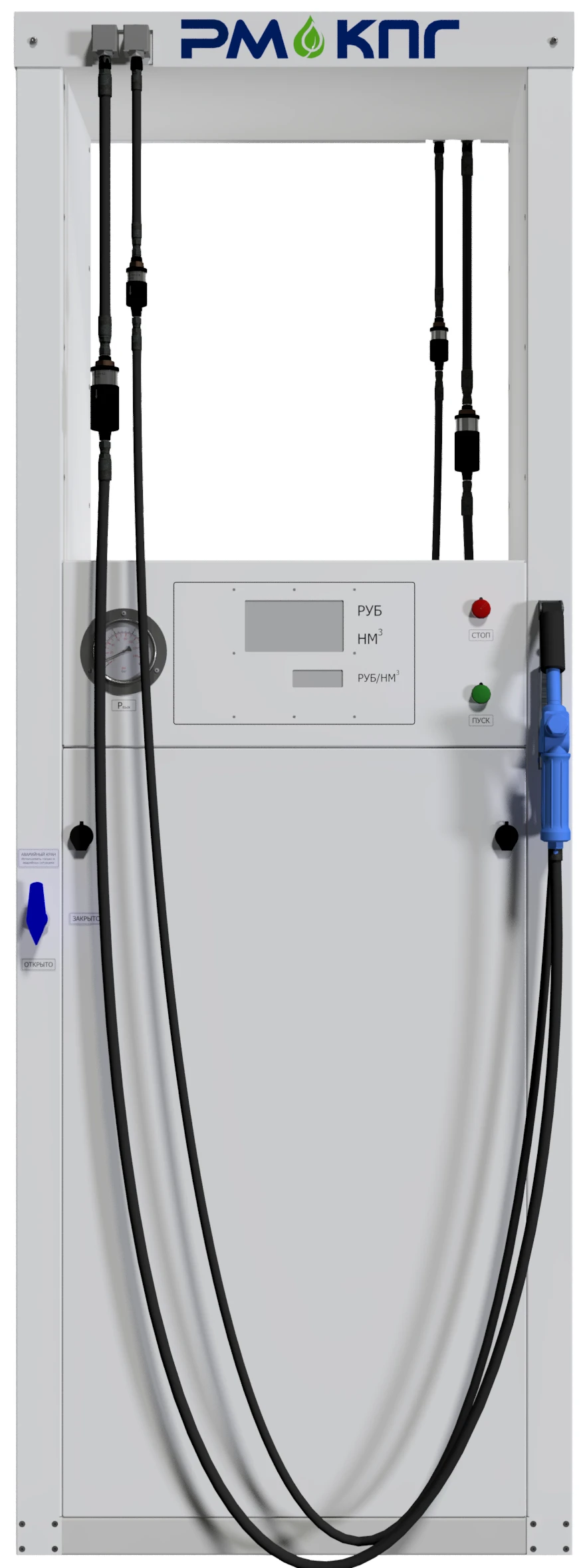

Gas fuelling dispenser RM STARK

The gas fuelling column (GFC) RM STARK is designed to measure the mass and calculate the volume of compressed (compressed) natural gas (CNG) when fuelling vehicles and PAGZ (mobile gas fuelling trucks).

GZK RM STARK is manufactured in accordance with TU 26.51.52.014-001-2020 and has the necessary permits for compliance with TR TS 012/2011 and TR TS 020/2011.

GZK RM STARK is manufactured with one or two filling stations with the number of inlet gas lines from one to three.

CNG flow rate (capacity) of GZK RM STARK varies from 15 to 80 kg/min depending on the version.

Main technical specifications:

Tolerance limit of the basic relative error
limit of tolerance of the main relative error of measurements, not more than, %: +-0,5;

Measuring range of working medium flow rates,
kg/min: from 1 to 80;

Maximum filling pressure:
- vehicle 19.6 MPa;
- PAGZ 24.5 MPa.
