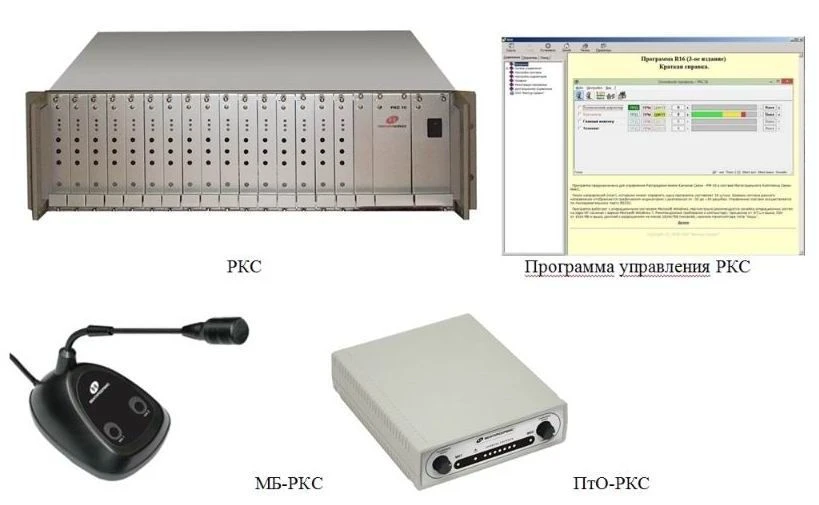

Communication Channel Distributor RKS VABM.300.315 for Conference Systems

Telecom Equipment

Manufacturer: VENTUR-SERVICE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The distributor of communication channels, hereinafter referred to as RKS, is designed to ensure selector communication of meetings. RCC is the main device of the complex of equipment included in the Backbone Communication Complex - MCC. Distinctive features of the distributor are: modular design; universal (19" or desktop) execution; ease of operation; the possibility of remote control and monitoring of signal levels PPM / PDP; easy to increase the number of directions; the ability to choose any voltage supply (standard range - 36 ... 72 V DC; "hot" replacement of faulty modules; small size and weight.

Specifications

M4pr-RCS 4-wire termination module: Supply voltage

±15 ?

M4pr-RCS 4-wire termination module: Type of input and output line

symmetrical, with transformer isolation

M4pr-RCS 4-wire termination module: Nominal input signal level, dB

+4.3 / -13

M4pr-RCS 4-wire termination module: Rated output signal level, dB

-13 / +4.3

M4pr-RCS 4-wire termination module: Permissible deviation of the signal level at the output, dB

±0.5

4-wire termination module M4pr-RCS: Input signal level adjustment range, dB

±7

M4pr-RCS 4-wire termination module: Output level adjustment range, dB

±7

M4pr-RCS 4-wire termination module: Adjustment range of noise rejection threshold level, dB (in steps of 2 dB), dB

-28…0

M4pr-RCS 4-wire termination module: Unevenness of the receiving and transmitting paths in the frequency range 300 - 3400 Hz, dB

±0.15

4-wire termination module M4pr-RCS: Transient attenuation between the receiving and transmitting paths of the same channel in di

(120)

4-wire termination module M4pr-RCS: Transient attenuation between the receiving and transmitting paths of the same channel in di

(80)

M4pr-RCS 4-wire termination module: Power consumption, dB

1.2 W

MCU-RCS C&C module: Input and output line types

Symmetrical, transformerless

MSU-RCS coordination and control module: control channel communication interface

- RS 485

MCU-RCS coordination and control module: supply voltage

±15 ?

MCU-RCS Coordination and Control Module: Power Consumption

1 W

DC 48 MP-RCS power supply module: power supply type

pulse, galvanic isolated, with short-circuit and overpolarisation protection

Power supply module DC 48 MP-RCS: insulation breakdown voltage

Not less than 500 DC, V

DC 48 MP-RCS power supply module: input voltage range

36 ... 72 ?

DC 48 MP-RCS power supply module: output voltages

±15 ?

DC 48 MP-RCS power supply module: maximum output power

30 W

DC 24 power supply module MP24-RCS (optional - by agreement with the customer it is delivered instead of DC 48 power supply modu

18 ... 36 ?

M4pr-RCS 4-wire termination module: Rated output impedance, ohms

600

M4pr-RCS 4-wire termination module: Nominal input impedance, Ohm

600

M4pr-RCS 4-wire termination module: Input and output overload capacity, dB

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
