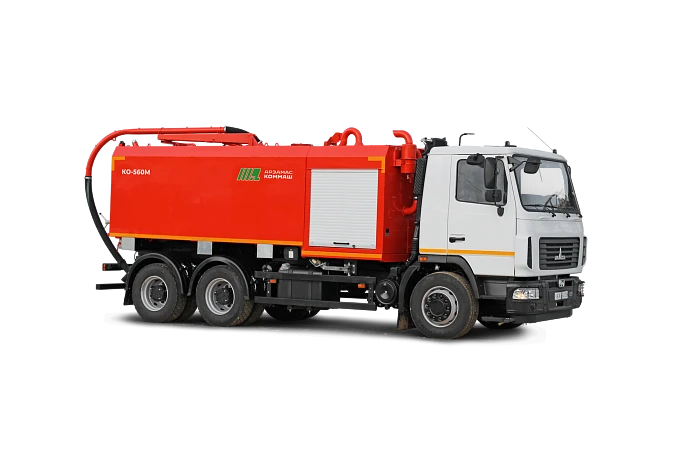

Combination machine KO-560M, type KO-560M, base chassis MAZ-6312C3

Municipal Road Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The combined machine KO-560M is designed for mechanised preventive year-round and emergency cleaning of rain gutters (manholes) of drainage and sewerage networks from sludge and its transportation to the place of unloading.
The vehicle chassis is equipped with a sludge collector and sewer cleaning equipment. Suction equipment includes a tank, vacuum system, suction boom on the support and turning device, controls. The equipment is equipped with an electric system of sludge level control in the tank. Sludge is discharged by lifting the tank. Channel cleaning equipment includes water tanks, high-pressure water pump, a mechanism for feeding and laying the hose, a set of hydrodynamic nozzles, heating unit, controls.
Temperature mode of operation from minus 20°C to plus 40°C.

Technical Specifications

Type of product according to PP RF 616	Vehicles for public utilities and road maintenance
Engine type	diesel
Base chassis type	MAZ-6312C3
Type	Combination machine
Water tank capacity	5
Highest vacuum in the tank created by the vacuum pump	0.085 MPa
Machine type	Combination machine
Technically permissible (authorized) maximum mass	26500...29500 kg
Weight of special equipment	6100 kg
Water pump delivery, (nameplate data)	215 l/min
Operating water pressure generated by the pump	16 MPa
Sludge tank capacity	6
Cleansing, suction depth	8 m
Diameter of the pipeline to be cleaned	100...1000 mm
Maximum noise level at the operator's workplace	80

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
