Garbage truck KM-7028-67 on chassis KAMAZ 53605 in modification KAMAZ 53605-A5
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
body of a rubbish truck with rear loading device, for collection of municipal solid waste (MSW) from containers, as well as manual collection of MSW, its compaction, transportation and mechanised unloading in places of neutralisation and disposal
Specifications
Type of product according to PP RF 616
Garbage trucks
Hopper capacity
14...18
MSW compression ratio for the garbage truck
Up to 10
Machine type
702867
Base chassis type
KAMAZ 53605
Engine type
Four-stroke diesel engine
Type of garbage truck equipment
rear loading equipment
Wheel arrangement
4x2 / rear
Engine type
Four-stroke diesel engine
Wheel arrangement
4 x 2 / rear
Hopper capacity
14...18
Base chassis type
53605
Control unit (marking)
CM2880
Fuel injector (type, marking)
CR/CP3S3/L110
Nozzles (type, marking)
?RIN 2 (0 445 120 329)
Air blower (type, marking)
Holset, HE351W
Air filter (type, marking)
??725.1109510
Exhaust gas exhaust and neutralization system
One silencer, exhaust gas neutralisation system
Neutralizers (markings)
integrated with the silencer
Internal combustion engine
Cummins ISB6.7E5300, four-stroke diesel engine
Number and arrangement of cylinders
6,row
Cylinder displacement
6700
Maximum power, kW (min-1)*
215 (2500)
Maximum torque, N?m (min-1)
1087 (1300)

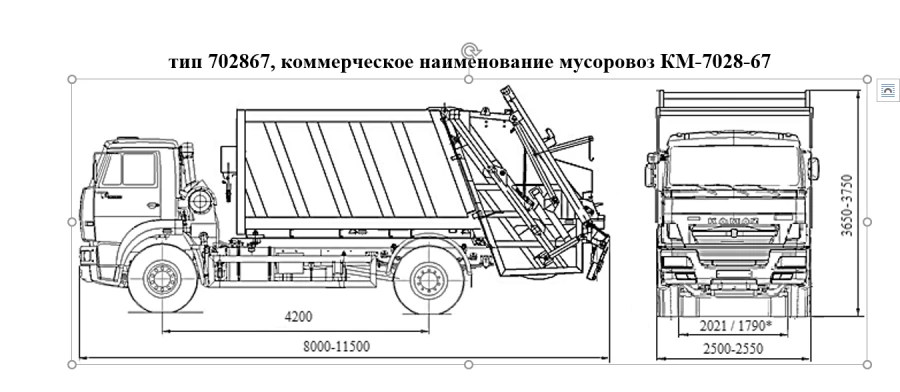

Vehicle length
8000...11500 mm
Vehicle width
2500...2550 mm
Vehicle height
3650...3750 mm
Base
4200 mm
Front / rear wheel track
2021 / 1790 mm
Vehicle kerb weight
11550...11910 kg
Technically permissible maximum mass of the vehicle
19675 kg
Technically permissible maximum mass on each axle of the vehicle
6675 kg
Technically permissible maximum mass on each axle of the vehicle
13000 kg
Technically permissible maximum mass of a road train
trailer towing is not provided kg
Transmission
mechanical
Clutch (brand, type)
ZF&SACHS or DÖNMEZ or Changchun Yidong Clutch, MF-395, MFZ-430; dry, single disc.
Transmission (make, type)
KAMAZ, 154; ZF 9S1310TO; ZF 9S1315TO with manual control
Power supply system (type)
Common Rail, direct fuel injection with common ramp
Silencers (markings)
Cummins, 4378042 (A051E058) or Cummins, 4378057 (A051K628)
Front suspension (description)
dependent, spring-loaded, with hydraulic telescopic shock absorbers, with transverse stabiliser
Rear suspension (description)
dependent, leaf spring, with hydraulic telescopic amortisers with transverse stability stabiliser
Steering (description)
Power assisted
Steering mechanism (type)
"screw - ball nut - rail - sector"
Brake systems
pneumatic double-circuit drive, with division into circuits on front axle and rear axle, with ABS, all wheels drum brakes
Brake systems
each service brake system circuit
Brake systems
Drive from spring energy accumulators to rear axle wheel brakes
Brake systems
retarder
Vehicle equipment
Maximum speed limitation device (the function of the maximum speed limitation device is performed by the electronic engine control unit); optional: engine preheater, air conditioner, emergency call device.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
