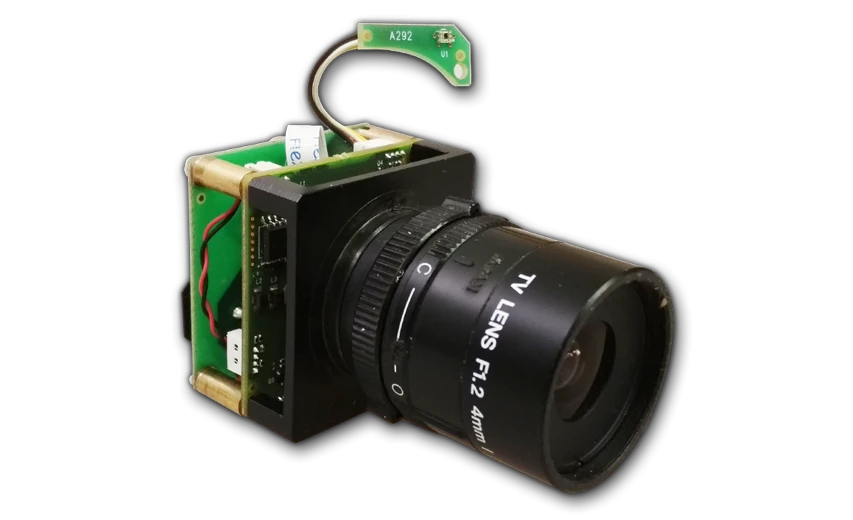

Color Surveillance Camera VEI-241-AHD for Indoor Security Applications

Television Video Cameras

Manufacturer: EVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to work as part of security television systems indoors with air temperature from +5 ° C to +50 ° C, atmospheric pressure from 720 to 780 mm Hg, relative humidity up to 90%. The camera generates an analogue video signal and can be connected to a monitor, TV, DVR, or to a device for inputting analogue signals into a computer.

Specifications

Photodetector format

CMOS, 6.09 mm diagonal (1/3"), colour, 1920 x 1080 pixels,.

Output signal formats

AHD-H|/CVBS (PAL/NTSC)

Resolution

Not less than 1100 TV lines in AHD 2MP mode, not less than 600 TV lines in CVBS mode

Field of view angle

Depends on the parameters of the lens used. The camera is designed for C/CS-Mount standard lenses with any focal length, manual or auto iris direct-drive type.

Sensitivity

Not worse than 0,01 lux 0,01 lux for colour image and 0,005 lux for black and white image at signal to noise ratio equal to 10 and relative aperture of used lens 1:1,2.

Maximum illumination of the observed object

Not less than 100,000 lux with the used lens with F 1.2.

IR filter

Mechanical, controlled by output level or light sensor .

Current consumption

Not more than 90 mA at a supply voltage of +12V.

External dimensions

42x42x47

Weight

Not more than 50 grams
