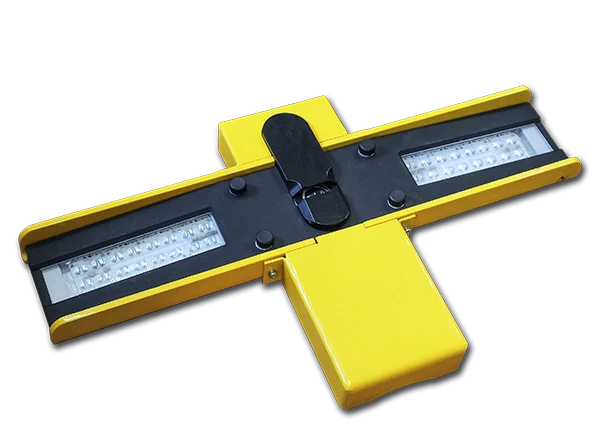

Television Module for Vehicle and Railway Inspection System "TMKPP" - Enhance Security Monitoring

Television Video Cameras

Manufacturer: EVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: to work as a part of television inspection systems for road and railway vehicles entering or leaving the protected area for the purpose of automatic detection and video fixation of abnormal objects installed on the bottom and informing the security staff of the object. The module has a sealed metal case, equipped with an automatically switched on underbody illumination system, camera porthole cleaning system. Power supply is 24 volts. Operating temperature range from -40 ° C to +40 ° C. Protection class IP68

Specifications

Nutrition

Power over Ethernet (801.3af PoE); 24 volts.

Video codecs

MJPEG, H.264

Maximum output resolution

1440x320 pixels

Frame rate (frames per second)

124

Network interface

100 Base-TX (RJ-45)

Protocols

HTTP, TCP, UDP, RTSP, SMTP, FTR, SNTP, DNCP, ARP, UPnP

Sensitivity

0,01 lux

Dimensions

825x462x60 (DxWxH) mm

Weight

30 kg

Protection class

IP68

Angle of field of view (degrees)

180°

Maximum illumination of the underbody illumination

20000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
