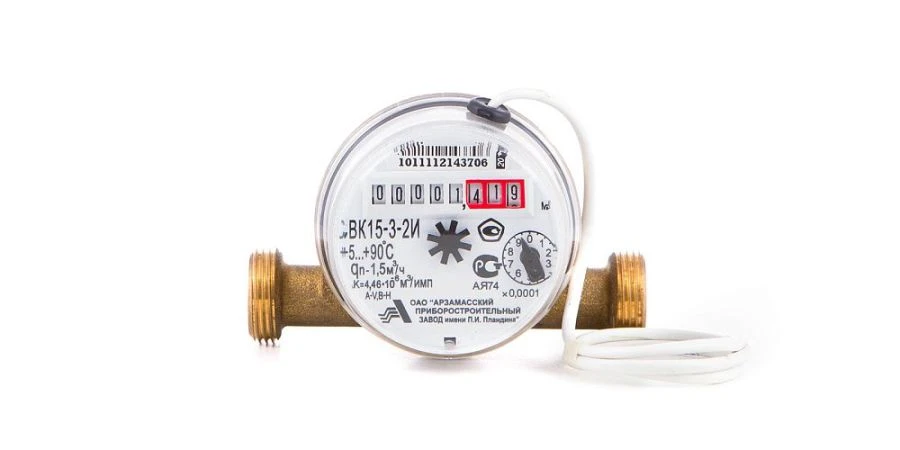

Cold and hot water meter SVK with pulse output

Universal cold and hot water meters SVK are designed for individual water consumers in measuring the volume of potable cold and hot water, with the ability to transmit data through communication lines (have a pulse output). In terms of resistance to ambient air temperature and humidity, the meters correspond to version B4 according to GOST R 52931. According to metrological classes, the meters correspond to class B at horizontal installation or class A at vertical installation according to GOST R 50193.1. Depending on the diameter of the nominal passage, the meters are produced in several sizes: SVK 15-3-2I; SVK 20-5I. Water meters are protected from external magnetic fields of permanent magnets with magnetic induction not more than 40 mTl. If necessary, the water meter can be equipped with a check valve. Inspection interval: 6 years. Warranty period of operation: 6 years from the date of putting the meter into operation. Average service life: not less than 12 years.
