CNC lathe model 16?70F3

CNC Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

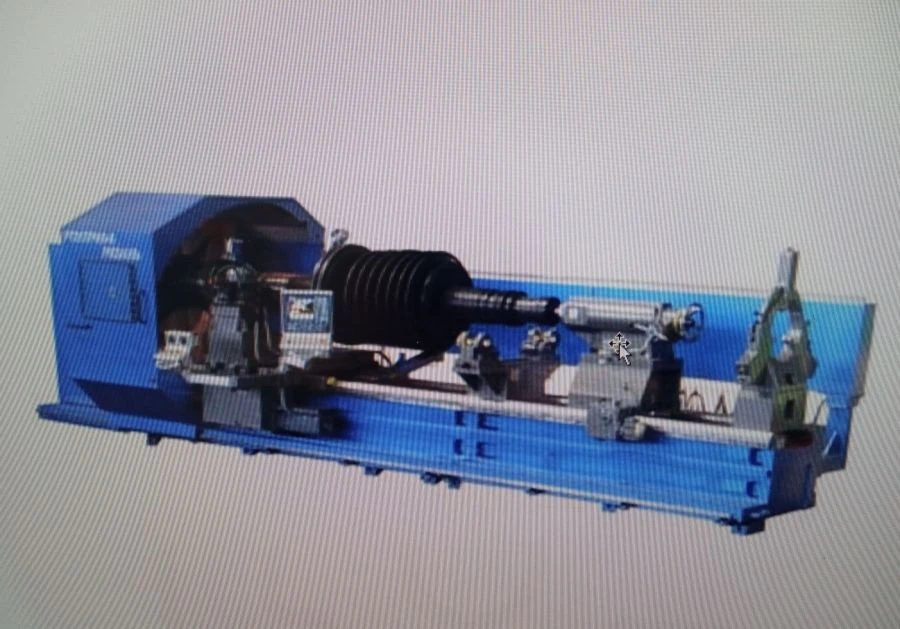

The chuck centre lathe with CNC model 16R70F3 and its modifications is designed for high-performance and precise machining of large-sized parts. In addition to turning operations the machine can perform contour milling, drilling and tapping. The machine is equipped with a wide range of manual and mechanised chucks of various diameters, lunettes, boring bars for various machining lengths, interchangeable fixtures for grinding, knurling, etc. Thanks to the operational control system there is a possibility of cycle or manual control, which makes it possible to use the machine in one-off production, especially with periodically recurring orders. It is also possible to operate the machine according to a control programme.

Technical Specifications

Machine weight, not more	9800 kg
Height	2100 mm
Width	2500 mm
Length	4500 mm
Type	cnc lathe
Height of the tool to be mounted	40 mm
Maximum mass of workpiece to be mounted in centres	8000 kg
Maximum length of the workpiece to be processed, not less than	1000 mm
The largest diameter of the workpiece to be machined above the slide, not less than	960 mm
The largest diameter of the workpiece above the bed, not less than	1240 mm
The largest diameter of the workpiece mounted above the bed, not less than	1380 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
