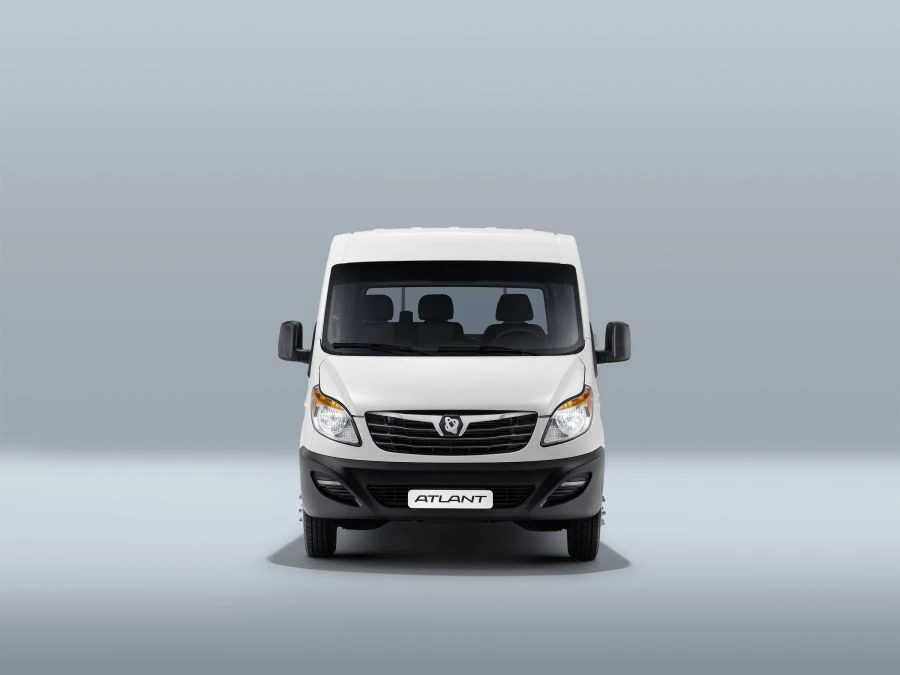

Chassis Sollers Atlant M209 (chassis without loading space, GVW 4200kg)

Chassis with GVW of 4200kg, 4x2 wheel arrangement, rear driving wheels, with longitudinal arrangement of the engine, frame with cab, with 2 doors (two swinging side doors). The engine is four-stroke diesel, four-cylinder, in-line, working volume 2746 cm3, pressurised fuel injection with common ramp and electronic control, maximum power 110 kW and maximum torque 355 Nm. Transmission is manual, manually controlled, with 6 forward and 1 reverse gear. The front suspension is independent, spring, on transverse arms, with hydraulic telescopic shock absorbers, with transverse stability stabiliser, rear suspension is independent, leaf spring, with hydraulic telescopic shock absorbers, with transverse stability stabiliser. Steering with hydraulic power steering, type of mechanism "pinion-rail".
