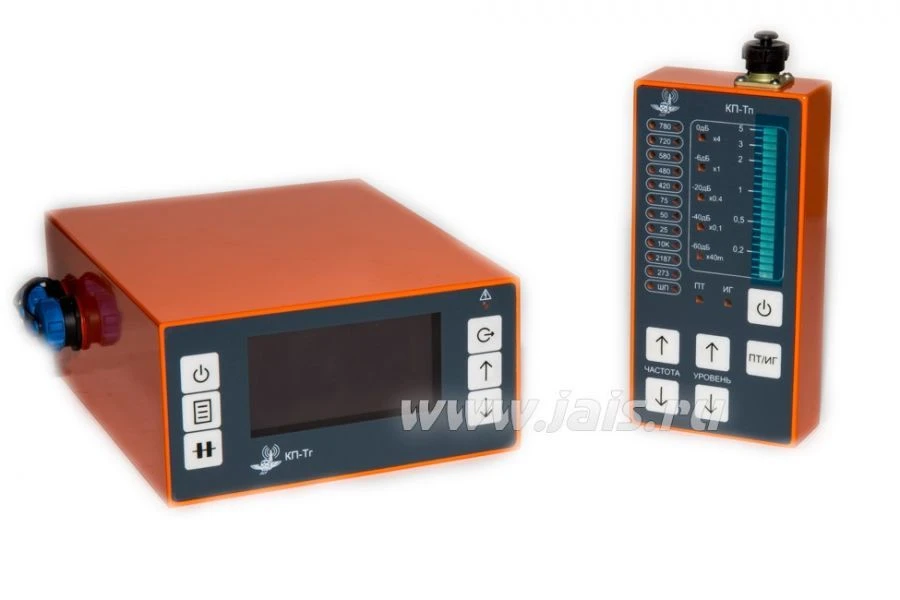

Cable organiser (cable tracing at frequencies of tone rail circuits (TRC), control of cable core steaming of TRC cable, o

Digital Electrical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed to find the route of underground cables of the line with increased noise immunity and expanded functionality compared to other domestic trasofiskateli.
Determines the trace and depth of burial of underground cable lines; Determines the place of breakage or short-circuit of cable cores; Controls steaming of cable cores in connecting sleeves; Performs the selection of pairs (cores) of cable from the start; Determines the presence of frequencies of signal current on the selected frequency in the rail line by inductive method.

Specifications

Maximum current consumption of the KP-Tg Generator load 2 A

Rated supply voltage of Generator KP-Tg B1/B8 2100/900 MHz V

Duration of pause between KP-Tg Generator parcels 0.29

KP-Tg generator signal sending period 1.92

Output power in automatic matching mode for 1 kOhm load resistance of KP-Tg Generator, not less than 10 W

Output power in the automatic matching mode for 50 ohm load resistance of Generator KP-Tg, not less 2 W

Maximum power delivered to the line in manual power control mode (with load impedance >100 ohms) Generator K 20 W

Effective matching resistance range of KP-Tg Generator 1...1000 ohm

Operating frequencies of the KP-Tg Generator (50;273.5;420;480;580;720;780) ± 0.5;(2187.5;5500;10000) ± 1

The generator has a Automatic protection of the electrical circuitry of the appliance against failure in case of severe load resistance surges

In device provided display of current voltage, load current, signal power and load resistance. If the voltage set at the generator output is not sufficient for high resistance measurements (in case the load resistance is higher than what the generator can measure), the LCD w

KP-Tg has 3 modes of operation - HF (continuous generation of high frequency signal); - HF-P (generation of high frequency signal with a pause); - LF-HF-P (generation of low and high frequency signal with a pause); In these modes both smooth manual power regulation and automatic power r

The KP-Tg generator is a Generator with possibility of automatic adjustment of output signal power (auto-alignment with line) and designed for outputting special signals into communication lines for subsequent determination of trace and depth of sintering with the help of receiver

The KP-Tp receiver is structurally designed as a A portable unit made of aluminium alloy. Inside the unit there is a lithium polymer battery to power the unit

Cable trace detection indication in two ways by change of level on the indicator and by presence of acoustic signal

Accuracy of KP-Tp Receiver trace determination at the depth of 0.8 m, not more than 0.8 m 15 cm

Depth of KP-Tp Receiver trace, up to 5 m

Sensitivity of the KP-Tp Receiver at minimum gain, not less 75 mV

Sensitivity of the KP-Tp Receiver at maximum gain, not less than 25 µV

Bandwidth of KP-Tp Receiver 4...160

Operating frequencies of Receiver KP-Tp 25

Power supply voltage for KP-Tp Receiver 3.7 V

Current consumption of the KP-Tp Receiver, not more than 130 mA

Overall dimensions of the receiver, not more than 127x60x28 mm

Dimensions of receiving antenna, max. 1040x155x125 mm

Weight of receiver, not more 0.65 kg

Weight of receiving antenna, not more 0.45 kg

Overall dimensions of the generator, not more 120x60x150 mm

Weight of the generator, not more than 2 kg
