Cable high-frequency pair twisting F/UTP Cat 5e PVC 10?2?0,52
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Description

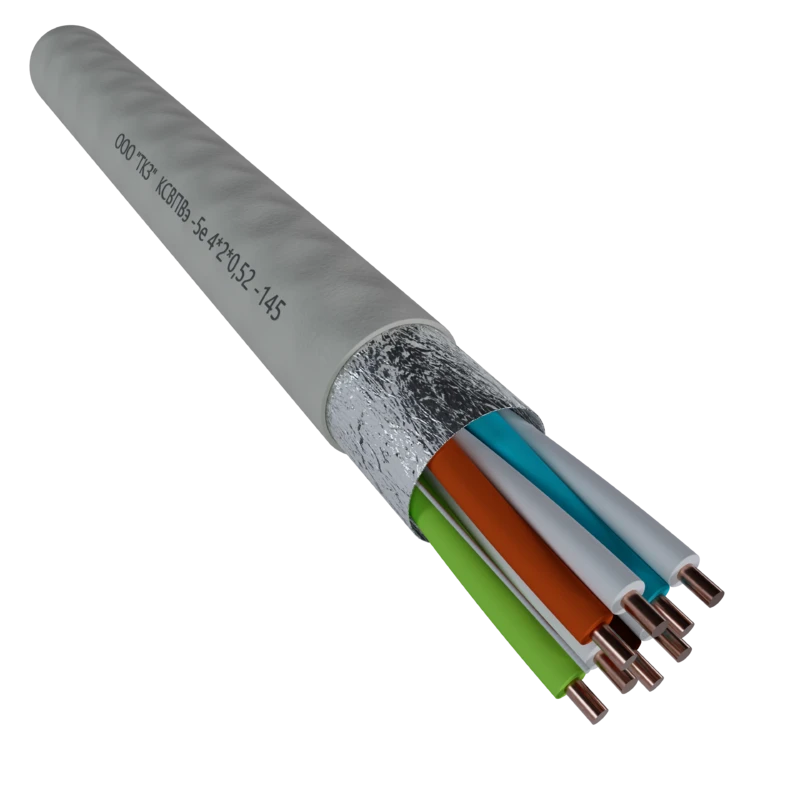

Construction:
The cores are made of soft copper wire in polyethylene insulation, twisted in pairs with steps, not equal and not multiples of each other.Pairs are twisted in the core unidirectional twisting.It is allowed over the twisted core of cables overlapping belt insulation of polyethylene terephthalate tape.On top of the core there is a screen made of aluminopolymer tape with a contact conductor made of tinned copper wire with a diameter of 0.4 mm. On top of the screen there is a sheath made of polyvinyl chloride (PVC). The cable does not spread combustion in single laying.
Field of application:
High-frequency cables of pair twisting for structured cable systems are designed for stationary horizontal and vertical laying inside buildings and structures, for operation in the frequency range up to 100 MHz (category 5 and 5e according to GOST R 54429-2011) and ISO/IEC 11801. Cables are manufactured in climatic version U, placement categories 3, 4 for cables with polyvinylchloride sheath according to GOST 15150.
The cores are made of soft copper wire in polyethylene insulation, twisted in pairs with steps, not equal and not multiples of each other.Pairs are twisted in the core unidirectional twisting.It is allowed over the twisted core of cables overlapping belt insulation of polyethylene terephthalate tape.On top of the core there is a screen made of aluminopolymer tape with a contact conductor made of tinned copper wire with a diameter of 0.4 mm. On top of the screen there is a sheath made of polyvinyl chloride (PVC). The cable does not spread combustion in single laying.
Field of application:
High-frequency cables of pair twisting for structured cable systems are designed for stationary horizontal and vertical laying inside buildings and structures, for operation in the frequency range up to 100 MHz (category 5 and 5e according to GOST R 54429-2011) and ISO/IEC 11801. Cables are manufactured in climatic version U, placement categories 3, 4 for cables with polyvinylchloride sheath according to GOST 15150.
Specifications
Wave impedance
100 ohm
Working capacity
5.6
Ohmic asymmetry of cores in a pair
2 %
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
