High-frequency cable SF/UTP Cat 6 PVC ng(A)-LS 4?2?0,57

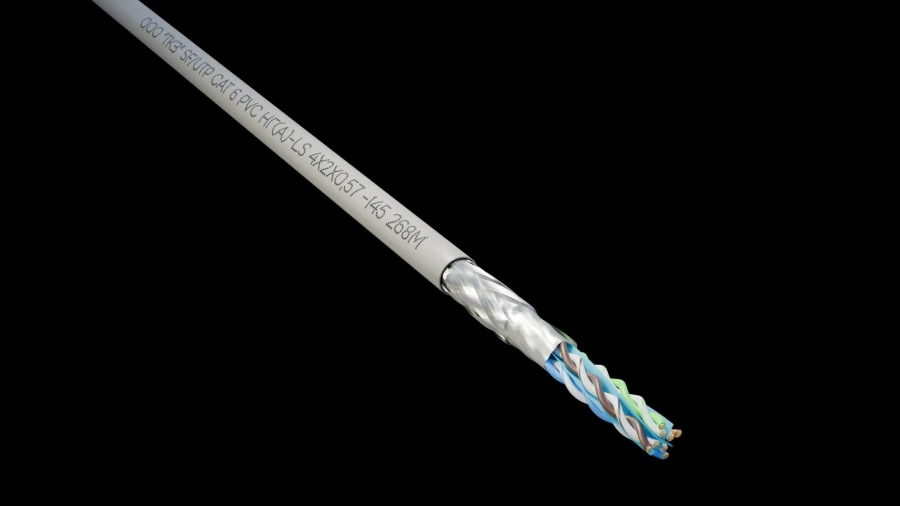

Design:Cores of copper wire with PE insulation, twisted in pairs with steps, not equal and not multiple of each other. The pairs are twisted into a core, separated by a polymer separator with unidirectional twisting. A common shield made of braiding with tinned copper wires over aluminopolymer tape is applied over the core. On top of the screen there is a sheath made of polyvinylchloride plasticate with reduced smoke and gas emission.Field of application: The cable is designed for horizontal and vertical laying in internal electrical installations, as well as in buildings, structures and closed cable constructions, taking into account the volume of combustible load, where it is required to use cables that do not propagate combustion in group laying in category A, with reduced smoke and gas emission according to GOST 31565-2012, for operation in the range up to 250 MHz (category 6 according to GOST R 54429-2011) and ISO / IEC 11801. Cables are manufactured in climatic version U, categories of placement 3, 4 according to GOST 15150
