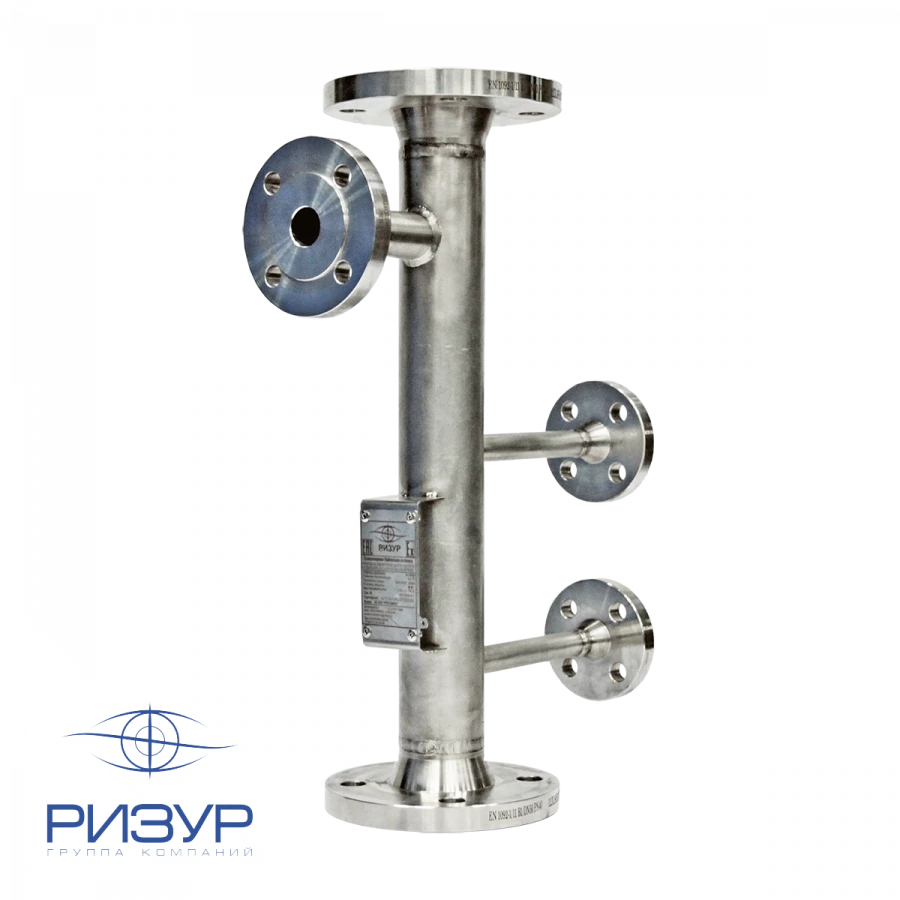

Bypass Level Measuring Column Series RIZUR-KBU for Accurate Liquid Level Monitoring

RIZUR-KBU series bypass level measuring column (remote level measuring chamber) is used in those cases when it is not possible to install signalling devices and level gauges of various types directly into the tank. RIZUR-KBU is designed for installation of level measurement and control devices. The operating principle of RIZUR-KBU is as follows: the level measuring bypass column and the tank connected to it by flange, threaded or welded method form communicating vessels. Accordingly, the level of the medium in the column and in the tank is the same, i.e. the liquid level in the tank is determined by measuring the liquid level in the bypass column.
