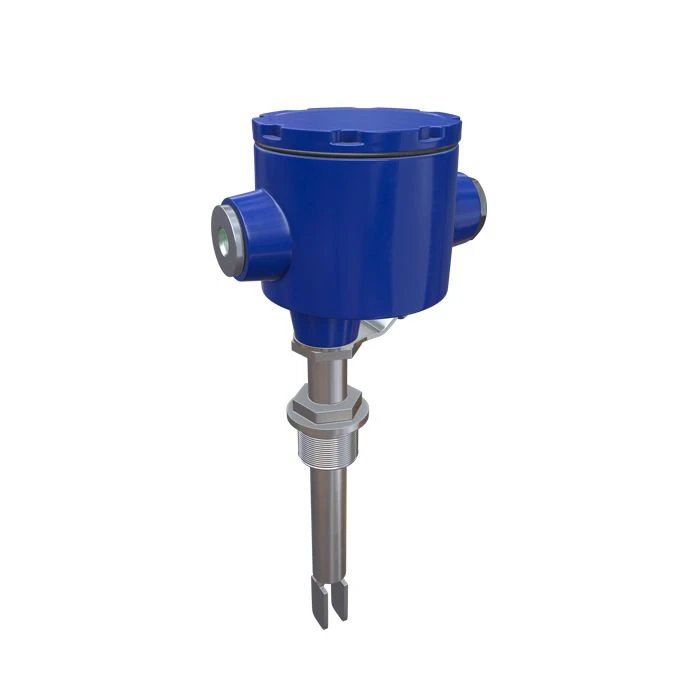

Liquid Level Sensor SJU-1-VB for Monitoring Liquids and Bulk Materials

Level Measurement Instruments

Manufacturer: AIS-NN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The vibration level switch SZHU-1-VB is designed to control the level of liquids or bulk products in open or closed, including pressurised containers, as well as in process units of industrial facilities of petrochemical, pharmaceutical, chemical, food and other industries. Due to the principle of operation, the sensing element can self-clean itself from adhering and solidifying media.

Specifications

Power supply voltage

24 V

Service life

B1/B8 2100/900 MHz year

Degree of protection of the outer shell

IP67

Operating medium temperature

-120 to +300 °C

Working medium pressure

0 to 35 MPa

Minimum density of the medium

450

Ambient temperature range

From -55 to +75 °C °C

Number of control points

1 pcs

Length of immersion part

60-8000 mm

Stand height

from 10 mm

Sealing unit

Connector, external thread; union nut, internal thread; flanged (flange plug or blind flange); special version upon prior agreement

Sensing element

Vibration fork

Location of the device on the object

arbitrary

Current consumption

Not more than 50 mA

Alarm delay time

0,1 - 10

Types of output signals

Relay output, 4/20 mA two-wire system; Namur; Special signal by prior agreement.

Voltage switched by the output key of the signaling device

From 14 to 28 V, with current not exceeding 100 mA

Explosion protection

Without explosion protection; 1 Ex d llC T6 Gb X (flameproof enclosure); 0 Ex ia llC T6 Ga X (intrinsically safe circuit)

Material of the signaling device in contact with the working medium

Stainless steel 12?18?10?

Material and type of enclosure

Aluminum alloy (standard); Stainless steel 12?18?10? (or equivalent)

Model

Liquid level switch SZHU-1-VB

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
