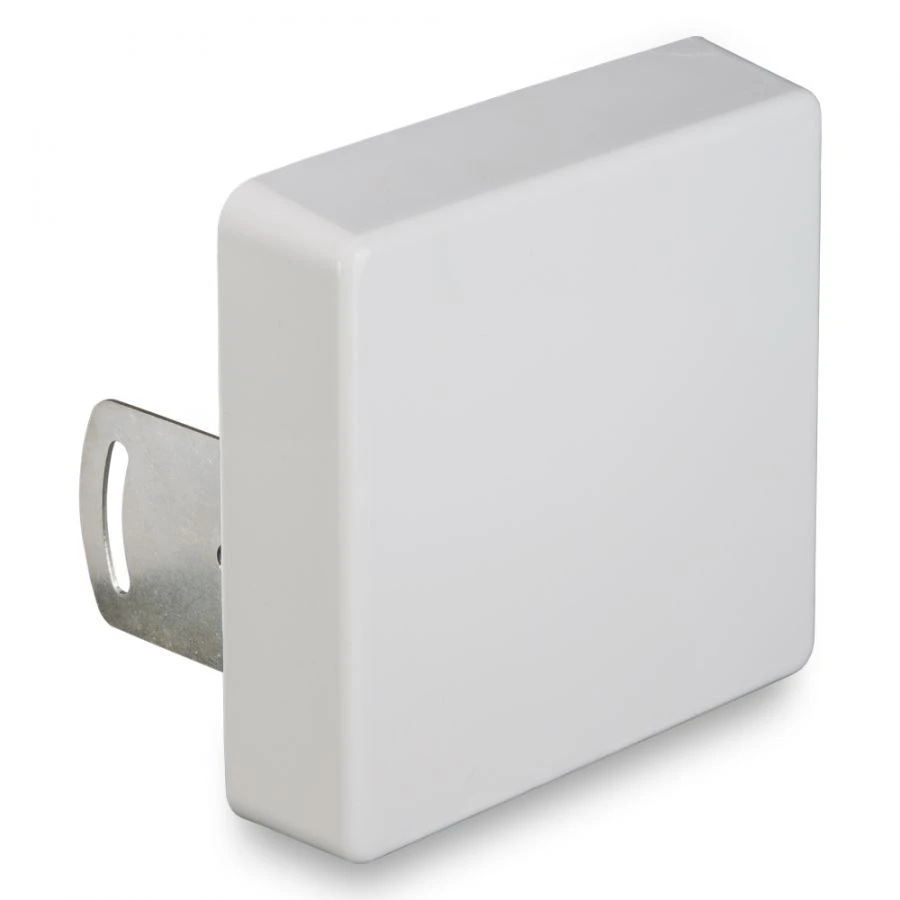

Broadband antenna 15 dB KP15-750/2900, 2G/3G/4G

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Wideband 3G/4G MIMO Antenna KAA15-1700/2700 Broadband Antenna 15 dB KP15-1700/2700, 2G/3G/4G Directional Antenna KP14-1800, LTE1800/GSM1800 14 dB Panel antenna 14 dB KAA14-1800, LTE1800 MIMO Directional 9 dB GSM900/LTE800 KP9-900 antenna

Description

Shirokoband (multi-band), directional panel antenna KR15-750/2900 with a gain of 15 dB is recommended for use with 3G/4G/YOTA modems, Wi-Fi routers, GSM 900/GSM 1800/3G/4G cellular amplifiers (repeaters) and other equipment operating in the frequency range 750-2900 MHz (radio communication systems, GSM alarm systems, etc.). The modem will automatically switch to 3G standard in case of absence of 4G signal, and the antenna will provide it with quality signal in both bands. High gain (15 dB) allows you to confidently work at a considerable distance from the base station of the mobile operator. Using the antenna with GSM 900/GSM1800/3G/4G cellular signal amplifier (repeater) allows you to provide a high level of mobile signal in areas of uncertain reception. The antenna works both for receiving and transmitting signals.

Specifications

Polarization Vertical

Connector N- female F- female

Weight 1.4 kg

Minimum value of the operating radio frequency range 1700

Maximum value of the operating radio frequency range 2700

Gain factor 8...15

Standing wave coefficient (VSWR) 1.6

Input impedance SBVVBG ohm

Maximum permissible power 10 W

Maximum wind load 108

MIMO support no

Received signals UMTS-2100

Type of execution panel

Length 250 mm

Width 250 mm

Height 100 mm

Mark Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
