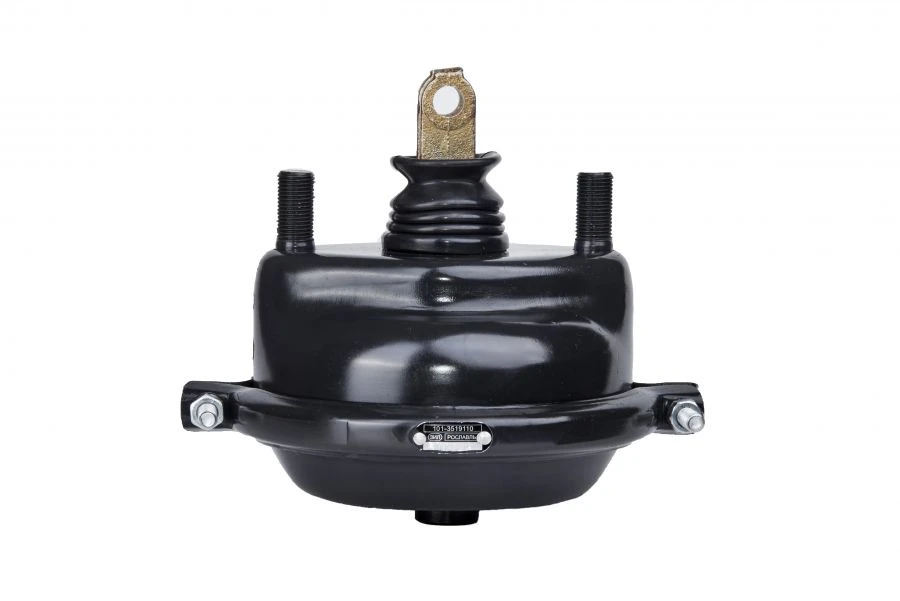

Brake chamber type 12 101-3519110

Pneumatic Brake Chambers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The brake chamber is designed to convert the energy of compressed air into work for braking mechanisms actuation

Specifications

Assignment Brake chamber is designed to convert compressed air energy into work to actuate braking mechanisms

Equipment Brake chamber - 1 pc. Transport plug - 1 pc. Passport- 1 pc. Packing- 1 pc.

Disposal information The procedure for disposal of the product shall be determined by the Consumer.

Manufacturer's warranty The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Storage conditions The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Certificate of Conformity NO. EAES RU C-RU.MT14.V.00124/19

Safety measures Before carrying out assembly and disassembly work on the flange connection of the brake chamber, make sure that the brake is not applied (no compressed air pressure in the chamber cavity).

Maintenance of the brake chamber In accordance with the operating manual of the motor vehicle for which the product is intended.

Installation of the apparatus In accordance with the vehicle manufacturer's documentation

Working pressure 0.8 MPa

Temperature range -46...80 °C

Weight 2.27 kg

Stroke 57 mm

Clamp installation angle ?° The angle of installation of the clamp ?° is set by agreement with the customer

Air inlet connection thread D 16 mm

Outreach of mounting bolts l Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording mm

Connection thread of the mounting bolts d2 B1/B8 2100/900 MHz mm

Width of fork slot B 12.5 mm

Diameter of the connection hole in the plug d1 B1/B8 2100/900 MHz mm

Bolt spacing A 76 mm

Stem outreach L 58 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
