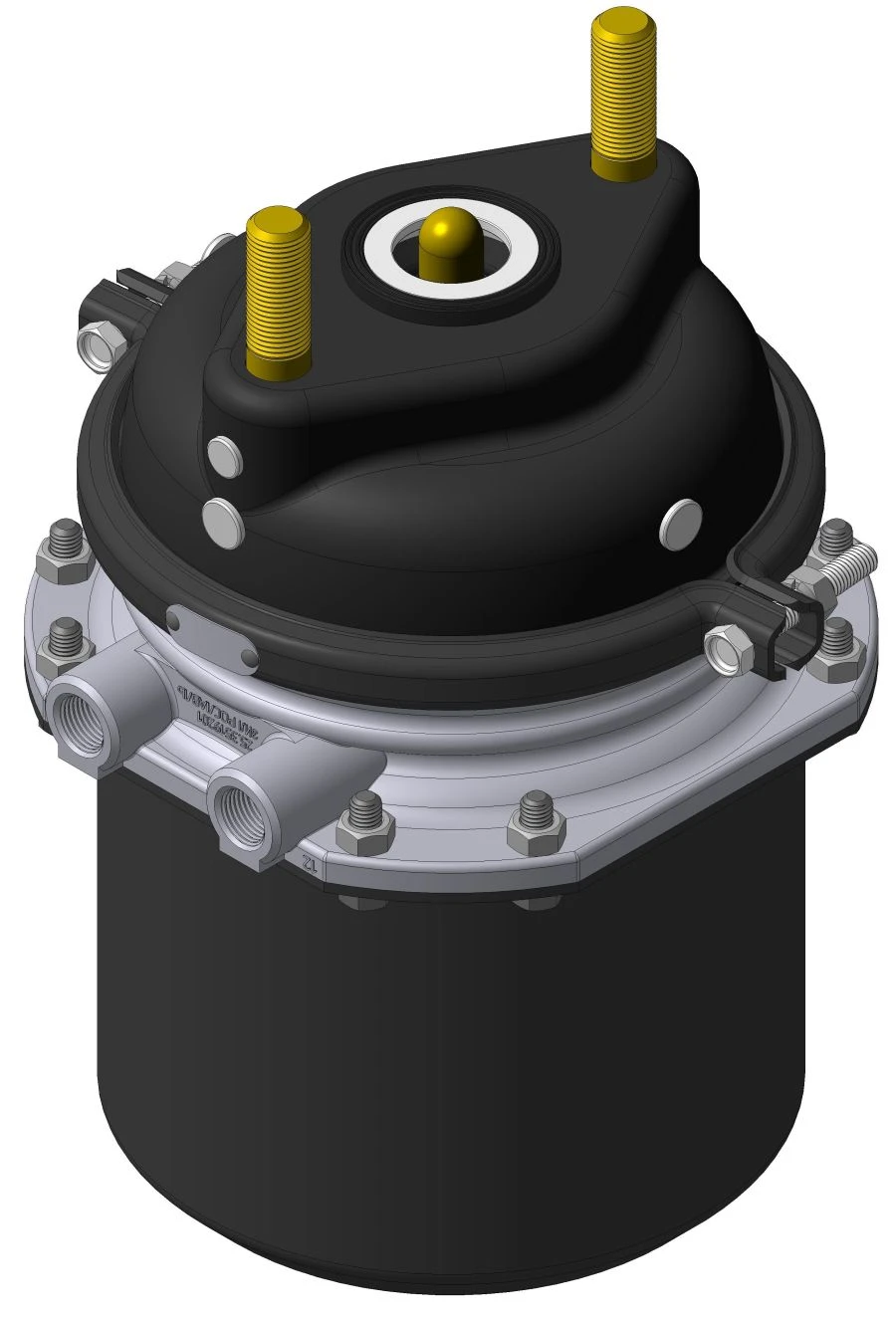

Brake Chamber with Spring Energy Accumulator Type 24/24 25.3519202-30

Brake Chamber with Spring Energy Accumulator Type 24/24 25.3519202-30

$90 - $300 USD

MOQ: 20 pieces

Key Features

Working pressure: 1 thous. t storage

Spring travel of the energy accumulator: 64...67 mm

Center distance of the air inlet connections: 56 mm

Bolt spacing B: 120 mm

Supplier Information

ROSSLAVL BRAKE SYSTEMS LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes. The spring energy accumulator is equipped with an integrated by-pass drain valve.

Specifications

Working pressure

1 thous. t storage

Spring travel of the energy accumulator

64...67 mm

Center distance of the air inlet connections

56 mm

Bolt spacing B

120 mm

Piston rod tappet sphere radius R

7.9...8 mm

Piston rod pusher outreach A

15 mm

Mechanical brake release unit screw key size

26.67...27 mm

Safety measures

Repairs without special equipment are not permissible. For assembly work, be aware of the inscription on the flange of the spring energy accumulator "CAUTION! SPRING IS UNDER TENSION".

Weight

10.5 m² living area

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Maintenance of the brake chamber

In accordance with the operating manual of the motor vehicle for which the product is intended to be used

Installing the brake chamber

In accordance with the vehicle manufacturer's documentation

Spring-loaded energy accumulator tripping pressure

0.48...0.54 thous. t storage

Diaphragm stroke

64...68 mm

Air inlet connection thread D

16 mm

Outreach of mounting bolts l

43 mm

Connection thread of the mounting bolts d2

16 mm

Equipment

Brake chamber - 1 pc. Transport plug - 2 pcs. Passport- 1 pc. Packing- 1 pc.

Clamp installation angle

310...320

Angle of rotation of air inlet pipes, deg.

270
