Block board "BGr-4"

Surge Protection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

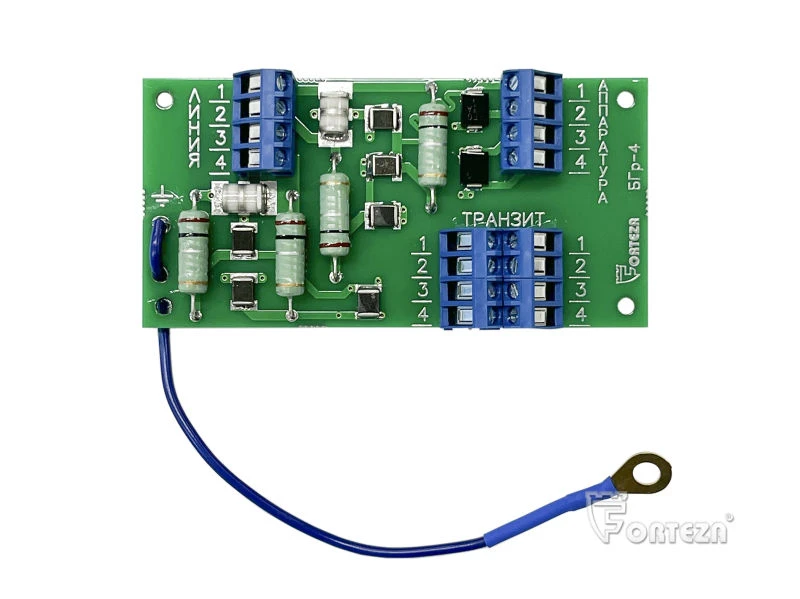

BGr-4 lightning protection block board is designed to protect signal circuits and circuits of low-voltage power supply of detectors from short-term overvoltage caused by inductions in long lines at lightning discharge.BGr-4 board is designed to replace the failed BGr-4 block board.

Specifications

Operating temperature range -55...65 °C

Protection tripping time, not more 25

Operating current, max. 2 A

Maximum pulse current 10000 A

Maximum pulse voltage 6 kV

Number of circuits 4 pc

Degree of enclosure protection IP-55

Weight 0.08 kg

Dimensions 105X60x20 mm

Maximum continuous DC operating voltage 30 V
