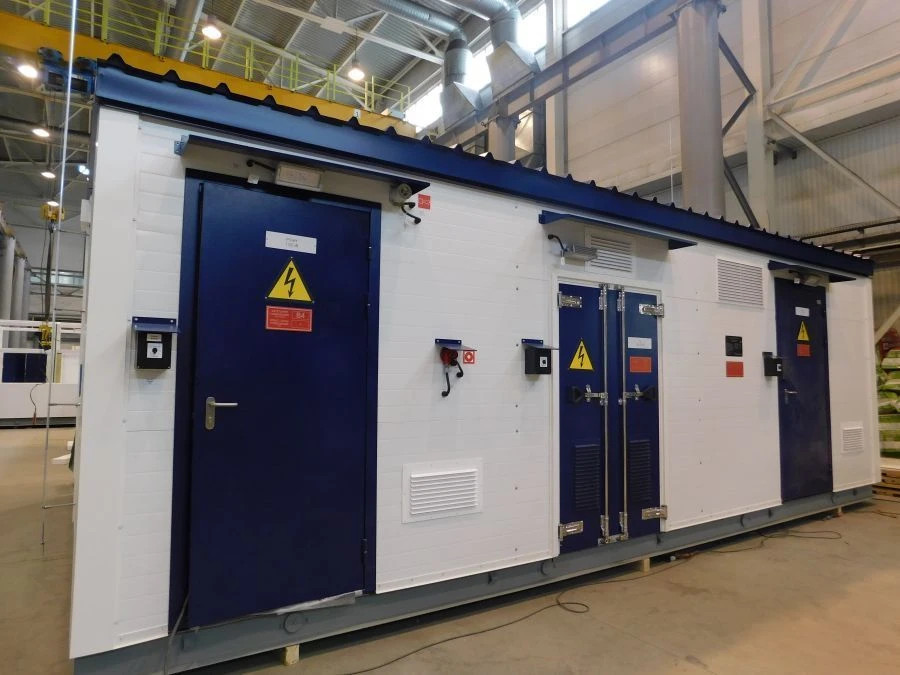

BKTP complete block transformer substations

Transformer complete block substations (BKTP, substations) are designed for receiving, converting and distributing electrical energy of three-phase current with voltage of 6(10)/0.0VA.
6(10)/0,4 (0,69) kV, frequency 50 Hz in accordance with the required by GOST 32144-2013 standards of electric power quality. BKTPs are designed for operation in general mechanical engineering, power engineering, oil and gas industry, chemical, pulp and paper industry, metallurgy, mining and other industries.
BCPPs are designed for operation in the following climatic conditions:
- altitude above sea level up to 1000 m;
- upper operating value of ambient air temperature not higher than +40°C;
- lower operating value of ambient air temperature not lower than minus 60°C;
- I - IV regions by wind speed head according to SP 20.13330.2016;
- I - V regions by snow load according to SP 20.13330.2016;
- fire-explosion safe environment, type I-II atmosphere according to GOST15150-
69 []:
- Gro...
