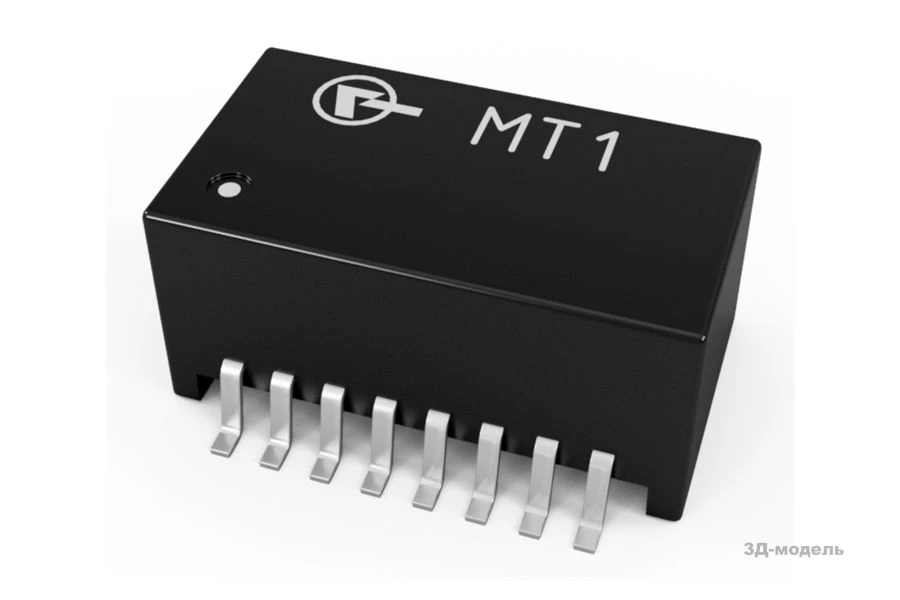

MT1 transformer modules

Low-Power Electrical Transformers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Modules transformer MT1 are designed for transmission of continuous signals in the interface channels of data and information transmission systems in accordance with IEEE 802.3 configuration 10/100Base-TX. Quality category "OTK".

Technical Specifications

Electrical strength of insulation between input and output windings: AC test voltage (time of exposure)	1650 ?
Insulation resistance between input and output windings	(voltage 100V), not less than 500 (10^6) ohms
Scattering inductance of windings	(100 kHz,0.1 V)0.3(10^-6) Gn
DC resistance of windings	Not more than 1.3 ohms
Signal operating attenuation	(1-100MHz), not more than -1 dB
In-phase noise suppression	(5 MHz), not less than -50 dB
In-phase suppression	(100 MHz), not less than -27.9 dB
Operating temperature range	-60...105 °C
Primary inductance	(100 kHz, 0.1 V), at least 440 (10^-6) Gn
Transformer turns ratio	1:1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
